[CD-Mag. Adjustment]
Overview
Adjust the printing magnification in the crosswise direction when printing.
You can adjust so that the test pattern of a chart is output with the correct magnification.
Reference
- For details about the
mark that is printed on the front side of the chart, refer to About Charts.
Setting Procedure (When Adjusting the Front Side)

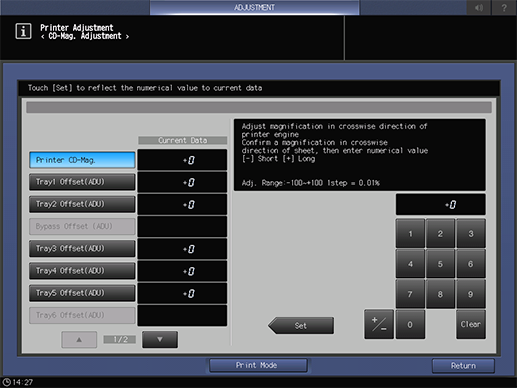

1
Press [Printer CD-Mag.].
2
Press [Print Mode].
3
Press [1->1].
4
Load A3 w or 11 e 17 w paper into any paper tray, and select that paper tray.
5
Press Start on the Control panel.
A chart is output.
6
Measure the magnification in the direction perpendicular to the paper feed direction using the scale.
Standard value: ^ 0.5% or less, within 1 mm for 190 mm
7
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
8
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-100~+100 1step = 0.01%]
9
Repeat steps 2 to 8 until the desired result is obtained.
Setting Procedure (When Adjusting the Back Side)
1
Press the adjustment target selection key to adjust.
Example: For Tray 1, press [Tray1 Offset(ADU)].
2
Press [Print Mode].
3
Press [1->2].
4
Load A3 w or 11 e 17 w paper in the paper tray for adjustment selected in step 1, and select that paper tray.
5
Press Start on the Control panel.
A chart is output.
6
Measure the magnification in the direction perpendicular to the paper feed direction of the back side using the scale.
The side that does not have the
mark is the back side.Standard value: ^ 0.5% or less, within 1 mm for 190 mm
7
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
8
Use the on-screen keypad or the Keypad of the Control panel to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-100~+100 1step = 0.01%]
9
Repeat steps 2 to 8 until the desired result is obtained.
