What Is [Card Cutting Mode]?
Overview
Adjust [Card Cutting Mode] of Trimmer Unit TU-510.
You can adjust the trim position or slit position.
NOTICE
The following option is required to use this function.
- Trimmer Unit TU-510 with Trimmer Unit TU-504 and Job Separator JS-507 mounted
Setting Items
Screen access

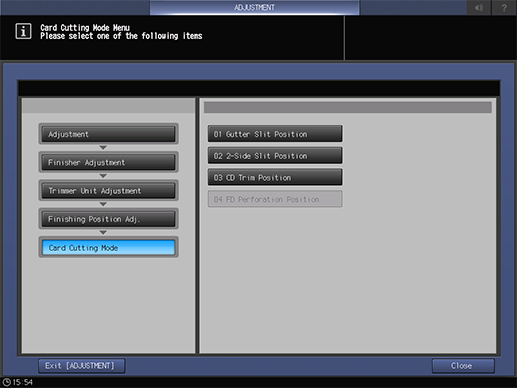

Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Card Cutting Mode]
Setting item | Description |
|---|---|
Adjust the gutter slit position. Even if the numeric value is changed, the gutter width remains unchanged. | |
Adjust the 2-side slit position in the paper feed direction. | |
Adjust the trim position in the crosswise direction. |
