[Crease (Up Convex) Position]
Overview
Adjust the crease (up convex) position.
NOTICE
The following option is required to use this function.
- Trimmer Unit TU-510 with Creaser Unit CR-103 mounted
Setting Procedure
1
Press the selection key of the crease timing to adjust.
Select which crease position is adjusted.
2
Press [Print Mode].
3
Load the desired paper into a paper tray, and select that paper tray.
If a trimmer profile is set, you can only select the same paper size as the size set in the trimmer profile.
Only when the trimmer profile is set, trimming can be set in [Trim] of [Output Setting].
4
Press Start on the Control panel.
A sample is output.
5
Check the crease position.
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7

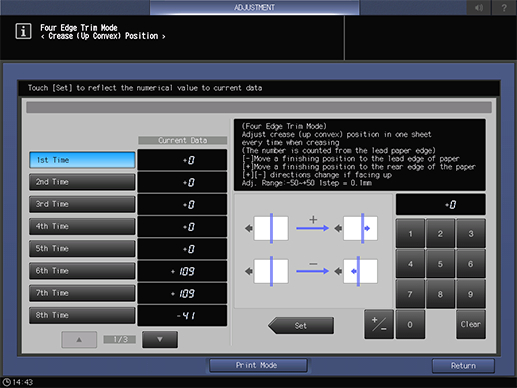

Use the on-screen keypad to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To move the crease position to the lead edge, (+) To move the crease position to the rear edge
[Adj. Range:-50~+50 1step = 0.1mm]
8
Repeat steps 2 to 7 until the desired result is obtained.
