[CD Perforation Position]
Overview
Adjust the perforation position in the crosswise direction.
NOTICE
The following option is required to use this function.
- Trimmer Unit TU-510 with Perforation Unit PE-102 mounted
Setting Procedure
1
Press [Print Mode].
2
Load the desired paper into a paper tray, and select that paper tray.
If a trimmer profile is set, you can only select the same paper size as the size set in the trimmer profile.
Only when the trimmer profile is set, trimming can be set in [Trim] of [Output Setting].
3
Press Start on the Control panel.
A sample is output.
4
Check the perforation position.
5
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
6

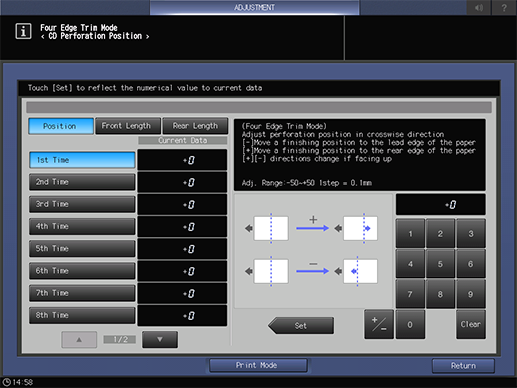

Press [Position].
7
Use the on-screen keypad to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To move the perforation position to the lead edge (+) To move the perforation position to the rear edge
[Adj. Range:-50~+50 1step = 0.1mm]
8
Press [Front Length].
Adjust this when shifting occurs at the second position before the perforation in the crosswise direction with [Four Edge Trim Mode].
9
Use the on-screen keypad to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To shorten the perforation, (+) To lengthen the perforation
[Adj. Range:-50~+50 1step = 0.1mm]
10
Press [Rear Length].
Adjust this when shifting occurs at the second position behind the perforation in the crosswise direction with [Four Edge Trim Mode].
11
Use the on-screen keypad to enter the numeric value.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To shorten the perforation, (+) To lengthen the perforation
[Adj. Range:-50~+50 1step = 0.1mm]
12
Repeat steps 1 to 11 until the desired result is obtained.
