[Package Color Auto Adj.]
Overview
Collectively adjust items related to image stability. The type of adjustment to be performed can be set freely.
NOTICE
All the following options are required to use this function.
- Intelligent Quality Optimizer IQ-601
- Video Interface Kit VI-514
Tips
- When special toner is used, [Package Color Auto Adj.] is not available. Manually adjust each adjustment item. For details, refer to [Package Color Manual Adj.].
Procedure
1
Press [Adjustment] on the [MACHINE] screen.
2

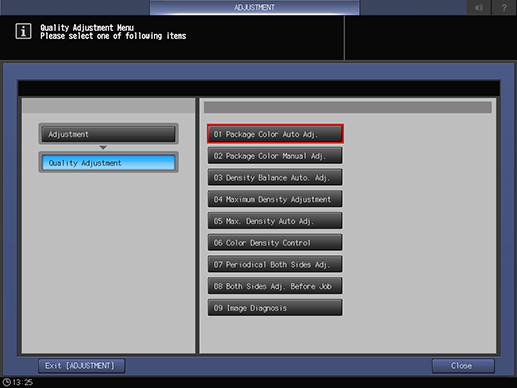

Press [Quality Adjustment] - [Package Color Auto Adj.].
For details about [Package Color Auto Adj.], refer to What Is [Package Color Auto Adj.]?.
3

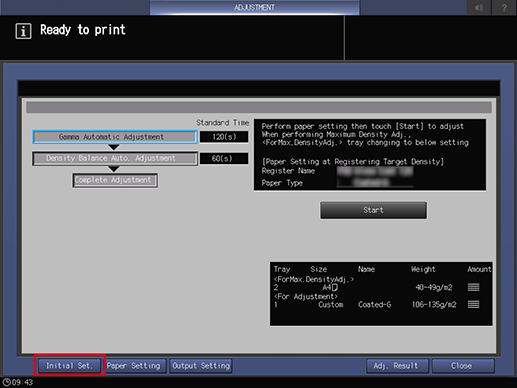

Before performing the adjustment, press [Initial Set.] as necessary to enable the adjustment items to be changed.
For details about [Initial Set.], refer to [Initial Set.].
4

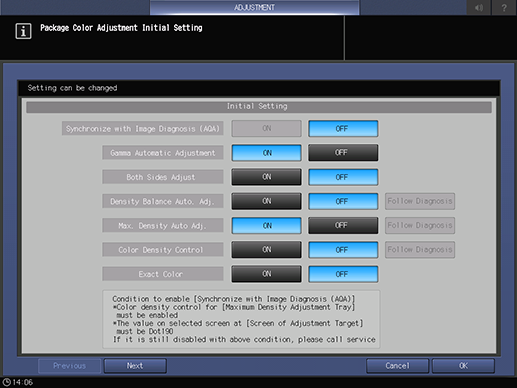

Change any of the setting contents ([Screen of Adjustment Target], adjustment items to be added, [Maximum Density Adjustment Tray], [Adjustment Tray]).
With [Synchronize with Image Diagnosis (AQA)], you can select the items for adjustment to be performed when performing [Package Color Auto Adj.] and the items for adjustment to be performed automatically after [Image Diagnosis]. For details, refer to [Initial Set.].
Set the timing for automatically performing [Package Color Auto Adj.] on [Auto Run]. For details, refer to Setting Items.
5
Load the paper used when registering the target density into the tray.
6
Set [Paper Setting] or [Output Setting] as needed.
7

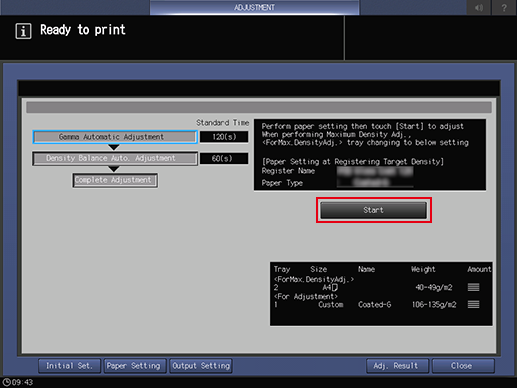

Press [Start].
8

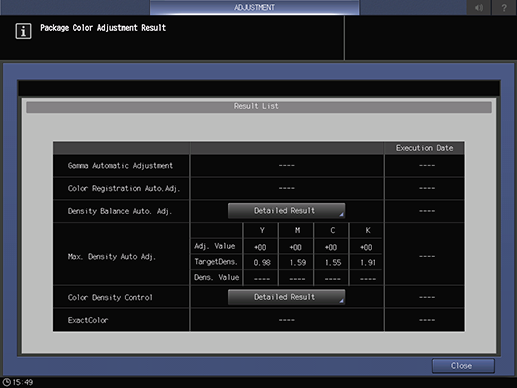

When the adjustment is completed, the result of the adjustment is displayed.
9
Confirm the contents.
