Web Connection (Image Controller)
Overview

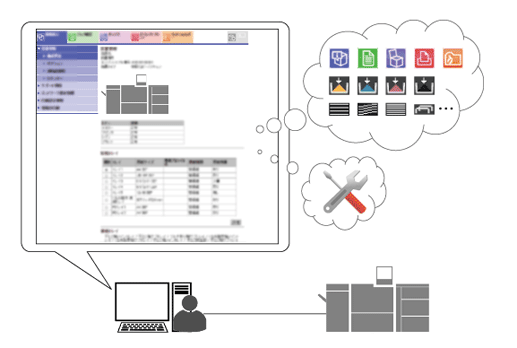

Web Connection (Image Controller) is an application that can configure various settings of the Image Controller via a browser from a computer on the network. You can easily enter text required for network settings and destination entry from a computer.
Web Connection (Image Controller) is Web Connection for the Image Controller.
Web Connection allows you to change maintenance, security, or network settings of the Image Controller.
NOTICE
- Image Controller is required to use Web Connection (Image Controller). For details about Image Controller, refer to Types of Image Controller.
NOTICE
- The special toner-related functions are only available for AccurioPress C14010S / AccurioPress C12010S / AccurioPress C10500S.
NOTICE
The following options are required to use the special toner-related functions.
- 5th Color Kit CK-102
- 5th Color Kit for Main Body UK-121
- 5th Color Kit for Own Controller UK-224
Tips
- Web Connection cannot be accessed via the browser installed in the Touch panel.
Web Connection is not available in the following cases.
The Enhanced Security mode is set to [ON]. For details, refer to [Enhanced Security Mode].
[Web Connection Setting] is set to [OFF] in [Network Setting]. For details, refer to [HTTP Server Settings].
[Web Connection Setting] is set to [Disable] in [Simple Security Setting]. For details, refer to [Web Connection Setting].
Reference
- For details about the Web Connection (Image Controller) operating environment, refer to Web Connection (Image Controller).
