Cleaning the Intelligent Quality Optimizer IQ-601
Overview
Clean the Intelligent Quality Optimizer IQ-601 in the following cases.
Before color measurement adjustment on the Intelligent Quality Optimizer IQ-601
When stains or paper jams have been detected on the Inline Scanner of the Intelligent Quality Optimizer IQ-601 (steps 1 to 4)
When paper jams have been detected near the centering sensor of the Intelligent Quality Optimizer IQ-601 (steps 5 to 13)
Procedure
1

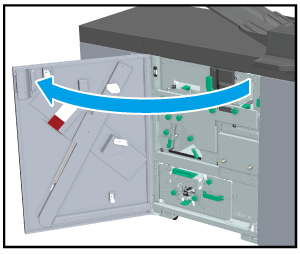

Open the Intelligent Quality Optimizer front door.
2

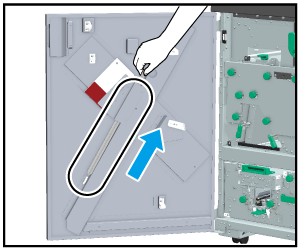

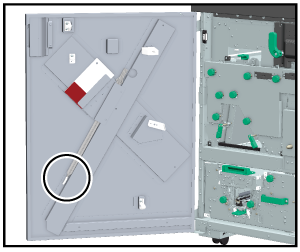

Pull out the Cleaning bar from the back side of the Intelligent Quality Optimizer front door.
3

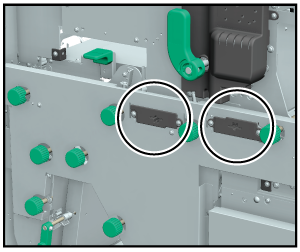

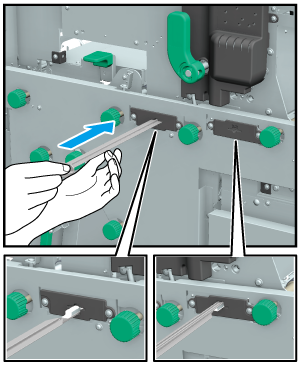

Insert the Cleaning bar into the Cleaning inlet of the Inline Scanner in the correct direction if any dirt that requires cleaning (paper dust, etc.) is detected. Pull out the Cleaning bar after inserting it all the way to the far end.
4
Return the Cleaning bar to its original location.
When returning the Cleaning bar to its home position, store it so that the Pad at the tip of the Cleaning bar faces out toward you. If the Pad is inserted facing toward the door, Pad may become dirty or damaged.
5

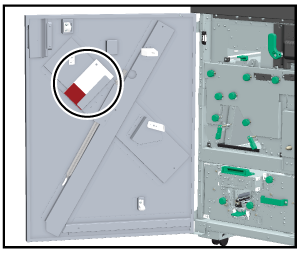

Remove the cleaning plate from the back side of the Intelligent Quality Optimizer front door.
6

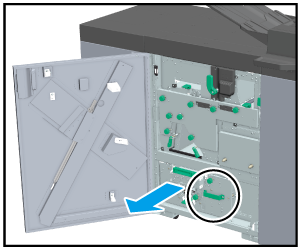

Pull the Handle [IQ13] to pull out the conveyance rack.
7

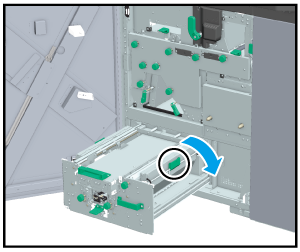

Open the Lever [IQ21].
8

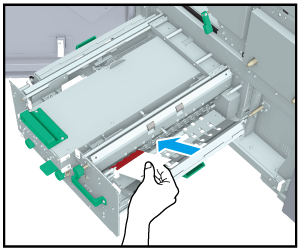

Insert the Cleaning plate as shown in the figure, and wipe off any paper powder and dust.
9
Pull out the Cleaning plate.
10

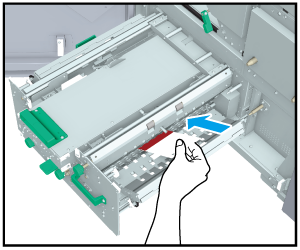

Shift the position of the Cleaning plate by one plate length backward, reinsert Cleaning plate, then pull it out.
Repeat this step up to the center position of the conveyance section (approximately 2 times).
11
Close the Lever [IQ21].
12
Push the conveyance rack to return into its original position.
13
Return the Cleaning plate to its original location.
14
Close the Intelligent Quality Optimizer front door.
15
If the message does not disappear after closing the Intelligent Quality Optimizer front door, clean the displayed part again (1 round trip).
If the message does not disappear after re-cleaning, contact your service representative.
