[Density Balance Auto. Adjustment] (When Mounted With Intelligent Quality Optimizer IQ-601)

Use Intelligent Quality Optimizer IQ-601 to automatically adjust the density balance.

NOTICE

All the following options are required to use this function.

• Intelligent Quality Optimizer IQ-601
• Video Interface Kit VI-514

1

Press [Adjustment] on the [MACHINE] screen.

2

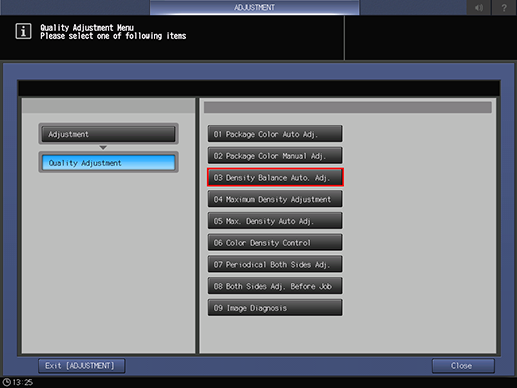

Press [Quality Adjustment] - [Density Balance Auto. Adjustment].

3

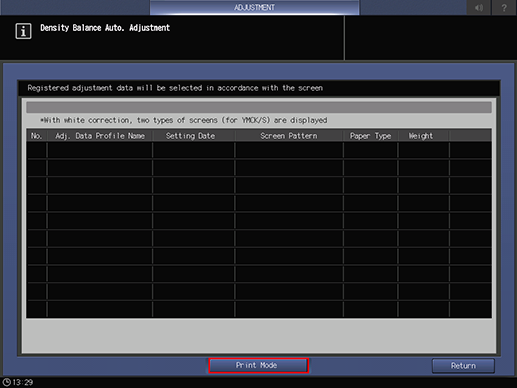

Press [Print Mode].

4

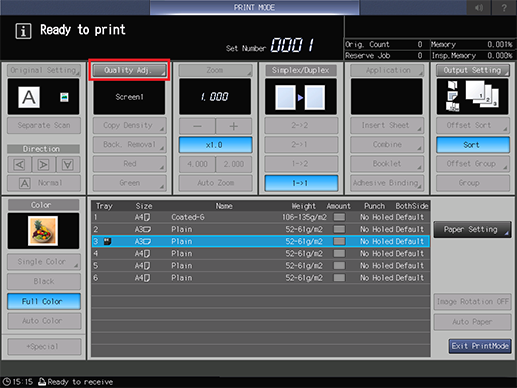

Press [Quality Adj.].

5

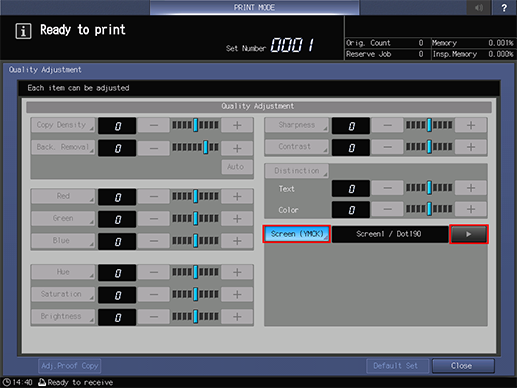

Press [)] to select the screen you want to adjust, and return to the [PRINT MODE] screen.

Tips

• You can also press [Screen (YMCK)] to select the screen to be adjusted.

6

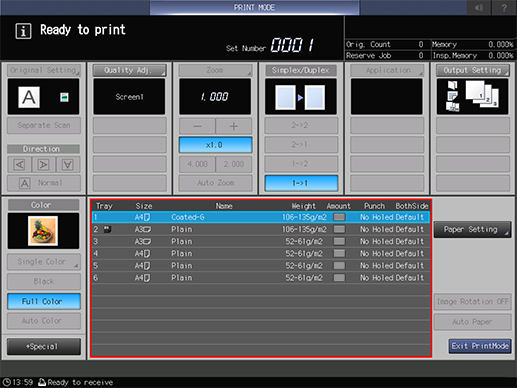

Set the paper size for the chart, and press Start on the Control panel.

7

The [Density Balance Auto. Adjustment Result] screen appears after the chart is output, and then the adjustment is complete.

8

Press [Return].

Displays a list of adjustment value profiles.

• For details about the [Density Balance Auto. Adjustment] screen, refer to Setting Items (With Intelligent Quality Optimizer IQ-601 Mounted).
