[Density Balance Auto. Adjustment] (When Mounted With Intelligent Quality Care Unit IQ-501)
Overview
Use Intelligent Quality Care Unit IQ-501 to automatically adjust the density balance.
Video of Procedure
Procedure
1

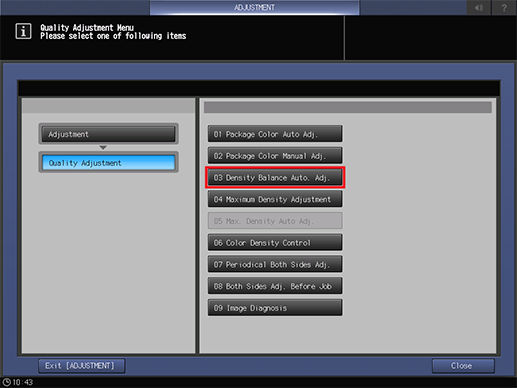

Press [Density Balance Auto. Adjustment].
For details, refer to Setting Items (With Intelligent Quality Care Unit IQ-501 Mounted).
2

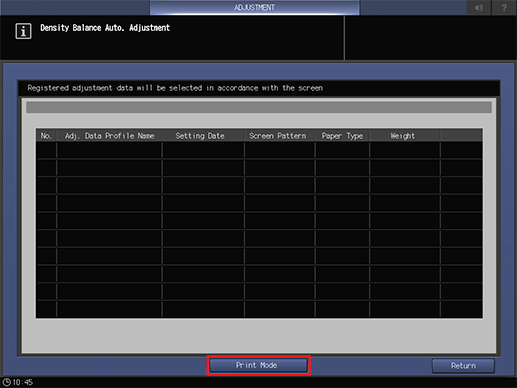

Press [Print Mode], [Quality Adj.], and then [Screen Pattern]. Select the screen to adjust, and return to the [PRINT MODE] screen.
3
Set the paper size for the chart, and press Start on the Control panel.
4

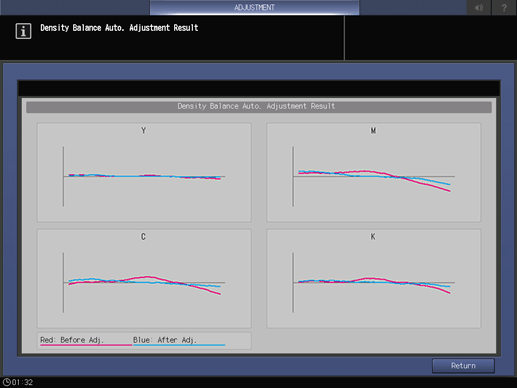

The [Density Balance Auto. Adjustment Result] screen appears after the chart is output, and then the adjustment is complete.
