Configure settings such as inspection standards and actions to be performed when something is detected.
You can configure settings from any of the following.
From [User Setting]:
Control panel - Utility/Counter - [User Setting] - [Common Setting]
From [Administrator Setting]:
Control panel - Utility/Counter - [Administrator Setting] - [Common Setting]

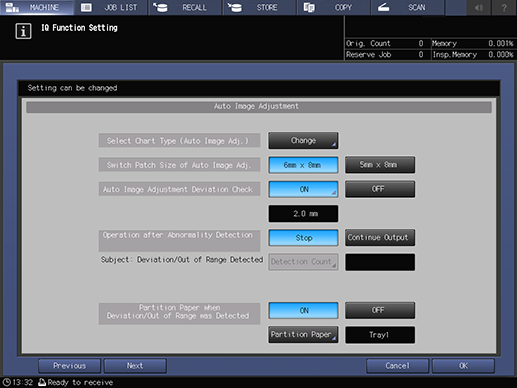

From [IQ Function Set.]:
[IQ Function Set.] on the [MACHINE] screen
Setting item | Description |
---|---|
[Auto Image Adjustment Deviation Check] | Set whether or not to automatically check a deviation. When [Auto Image Adjustment] is set to [Off], a deviation can be detected from the reference image and inspection image without crop marks. |
[Operation after Abnormality Detection] | Set the operation to be performed when a deviation or out of range image is detected. |
[Partition Paper when Deviation/Out of Range was Detected] | Set to insert partition paper when output paper does not satisfy the standard. |
[Automatic Reprinting upon Abnormality Detection] | Ejects output paper that does not meet the criteria and any subsequent output paper inside the system to a tray separate from the output destination of the job, and configures settings to reprint the ejected output paper. |
[Create Auto Inspection Report] | Set to create an automatic inspection result report. |
[Create Report of Completed Job] | Set to create reports of inspection results that are within the standards. |
[Automatic Inspection Level Setting] | Set the inspection standard for automatic inspection. |
[Reference Image Automatic Deletion] | Set to automatically delete the reference image created by automatic inspection. |
[Reference Image Type Selection] | Select a reference image type. It is recommend that you set to [RIP Data]. |
[Setting for Inspect. of Excluded Areas] | Set the default of the Inspection Excluding Area. |
[Counted Error by Each Level] | Totalize the detected stains and omissions by level and display the result in the automatic inspection result report. |
[Text for OCR] | Set the characters that can be read with OCR. |
[Output Tray for Reference Image Job] | Set the destination where to output a reference image job. |
