[Highlight Automatic Adj.]

Use the scanner to change the gamma curve. The gradation and background density of the highlighted part will be adjusted automatically.

Adjust if the gradation density reproduction of the highlighted part differs for each screen.

NOTICE

The following setting is required to use this function.

• Perform [Gamma Automatic Adj.].

Tips

• The procedure for making adjustments varies depending on the options installed.
• Normally, adjustment is done using [Highlight Automatic Adj.]. Use [Highlight Adjustment] to make fine tuning.
• Use white printing paper for this adjustment. If there is color on the paper, the color of the chart changes depending on that color, and the adjustment cannot be made correctly.

Reference

• For details about [Gamma Automatic Adj.], refer to [Adjustment / Maintenance].
• To make fine adjustments manually, refer to [Highlight Adjustment].

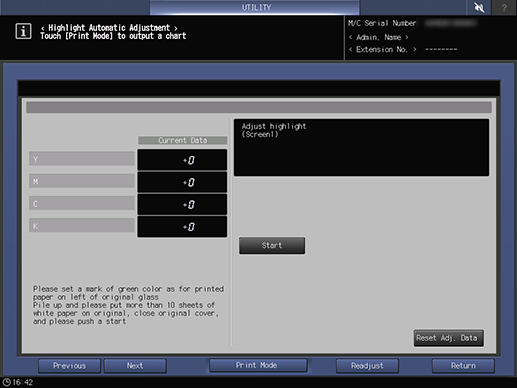

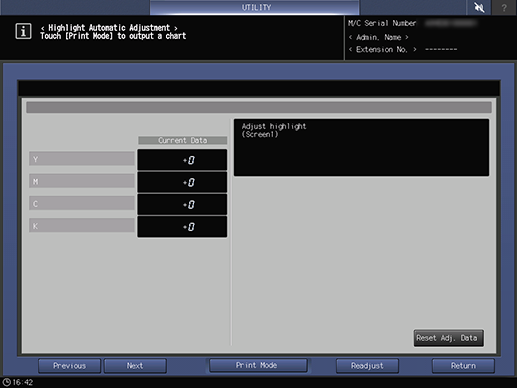

1

Press [Next] or [Previous] to select a screen to be adjusted.

2

Press [Reset Adj. Data] if the gradations of the image highlighted part is over-exposed or under-exposed.

To set the highlight value to 0, press [Yes] in the dialog box that is displayed by pressing this item.

3

Press [Readjust].

• Press [Yes] when the confirmation dialog box is displayed.

4

Press [Print Mode].

5

Set A4 v paper and select the relevant paper feed tray.

6

Press Start on the Control panel.

A chart is output.
