[1st Trans. Dis-elec. Output]

Overview
Setting Procedure

Overview

Set the neutralization voltage of the 1st transfer belt for yellow, magenta, cyan, black, and special individually.

You can adjust the AC and DC voltage values of the 1st transfer neutralization pole to improve image noises such as ripples and photoconductor memory.

Setting Procedure

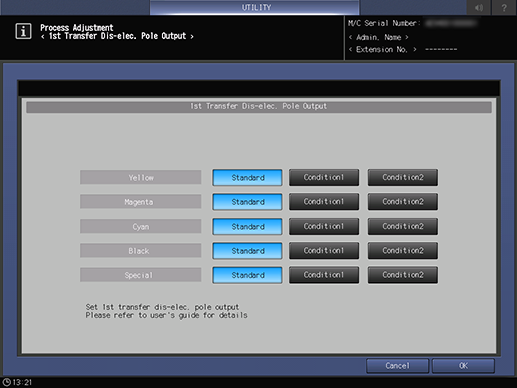

1
Select conditions for each color.

  • [Condition1]: Increases the AC voltage. This improves the occurrence of ripples.

  • [Condition2]: Increases the DC voltage. This improves the occurrence of photoconductor memory.

2
Press [OK].
