[List of Realtime Collation Master]
Overview

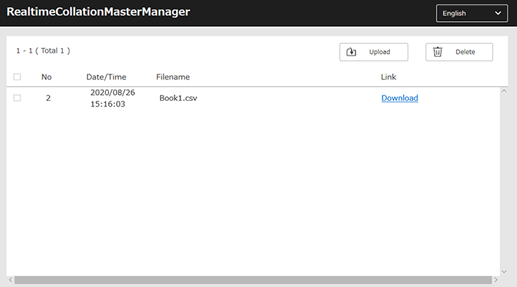

Display the CSV files of VDP print data used for real-time VDP collation in a list.
The CSV files can be uploaded from Web Utilities of Auto Inspection Unit AI-101 to this system.
Item | Description |
|---|---|
[No. ] | Number in the order in which the CSV files were uploaded. |
[Date/Time] | Date and time the CSV file was uploaded. |
[Filename] | CSV file name. |
[Link] | Click [Download] to download the CSV file. |
NOTICE
- The optional Variable Data Inspection Kit UK-312 is required to use this function.
Reference
- For details about how to upload CSV files, refer to [Print Workflow].
Setting Items
Setting item | Description |
|---|---|
[Upload] | Uploads a CSV file to this system. |
[Delete] | Deletes the CSV file with the check box selected. |
Check box | Select the check box of the CSV file you want to delete. |
