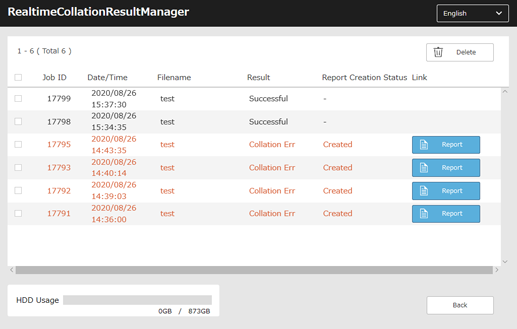

[List of Realtime Collation Result]
Overview
Lists the results of collating the CSV file and the actual printed matter of VDP print data in real time.
[List of Realtime Collation Result] allows you to check the following items.
Item | Description |
|---|---|
[Job ID] | ID of the job for which the real-time VDP collation was performed. |
[Date/Time] | Date and time when the job was output. |
[Filename] | File name of the job for which the real-time VDP collation was performed. |
[Result] | Result of real-time VDP collation function. |
[Report Creation Status] | Allows you to check the report creation status. If creation is not completed, the detail cannot be viewed in [Report]. |
NOTICE
- The optional Variable Data Inspection Kit UK-312 is required to use this function.
NOTICE
The following settings are required to create a real-time collation result report.
- Set [Create Auto Inspection Report] to [ON].
- Perform real-time VDP collation.
Reference
- For details about [Create Auto Inspection Report], refer to [Common Setting].
- For details about the real-time VDP collation function, refer to [Print Workflow].
Setting Items
Setting item | Description |
|---|---|
[Japanese] / [English] | Selects the language to display. Click this to select from the menu list that is displayed. |
[Delete] | Deletes the report of the job with the check box selected. |
Check box | Select the check box of the job you want to delete. |
[Report] | Displays the screen for checking [Out of range] or [Decoding result]. |
[Error Report] | Displays the report list of an error that occurred during job execution. A report is output as a PDF file, and automatically deleted after the job was completed. This item is not displayed if no error occurs. |
in the upper-right of a page, it turns into
and is registered as a bookmark.
