Loading Banner Paper Into the Banner Paper Tray Unit MK-760

Load banner paper.

NOTICE

• In order to prevent sheets from sticking together, take each sheet from the stack individually and load the required number. Also, if the paper has been loaded for a long period of time, remove and reload each sheet before printing.
• Load the paper so that it is placed against the left side of the tray. If paper is not properly set until the end, the paper may become curled and may cause problems in the feed mechanism, which in turn can cause paper jams.

Reference

• For details about the available banner paper size, refer to Banner Paper Tray Unit MK-760.

1

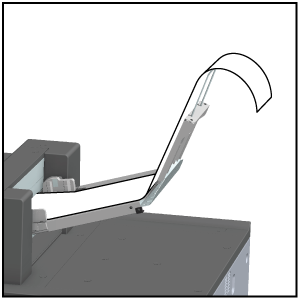

Load banner paper into the Banner Paper Tray Unit MK-760 with the print side facing up.

2

Align the Side guides of the Bypass tray with the banner paper.
