[Each Paper Type Color Adj.] (For Intelligent Quality Care Unit IQ-501)

Measure the density adjustment values according to the paper and register.

1

Press [Adjustment] on the [MACHINE] screen.

2

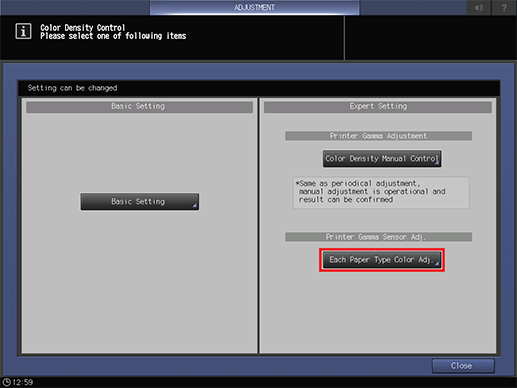

Press [Quality Adjustment] - [Color Density Control] - [Each Paper Type Color Adj.].

• For details about [Each Paper Type Color Adj.], refer to [Each Paper Type Color Adj.].

3

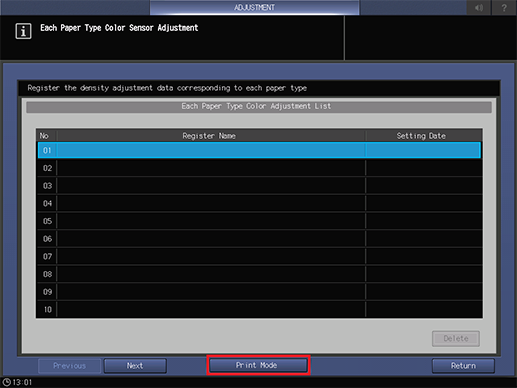

Select a number for registering the color density adjustment values, and press [Print Mode].

4

Enter the name of the color sensor adjustment value for each paper type, and press [OK].

5

Press [Quality Adj.].

6

Press [)] to select the screen you want to adjust, and return to the [PRINT MODE] screen.

• You can also press [Screen Pattern] to select the screen to be adjusted.

7

Set the paper size for the chart, and press Start on the Control panel.

8

The chart is output and the adjustments performed automatically.
