[Density Balance Auto. Adjustment] (When Mounted With Intelligent Quality Care Unit IQ-501)

Use Intelligent Quality Care Unit IQ-501 to automatically adjust the density balance.

1

Press [Adjustment] on the [MACHINE] screen.

2

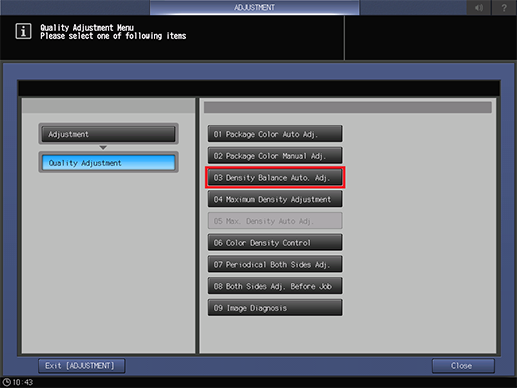

Press [Quality Adjustment] - [Density Balance Auto. Adjustment].

3

Press [Print Mode].

4

Press [Quality Adj.].

5

Press [)] to select the screen you want to adjust, and return to the [PRINT MODE] screen.

• You can also press [Screen Pattern] to select the screen to be adjusted.

6

Set the paper size for the chart, and press Start on the Control panel.

7

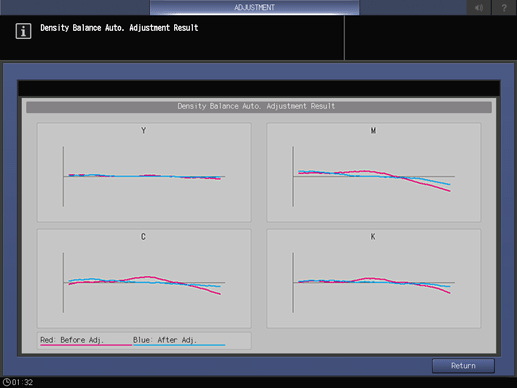

The [Density Balance Auto. Adjustment Result] screen appears after the chart is output, and then the adjustment is complete.

8

Press [Return].

Displays a list of adjustment value profiles.

• For details about the [Density Balance Auto. Adjustment] screen, refer to Setting Items (With Intelligent Quality Care Unit IQ-501 Mounted).
