Sending (Basic Operation Flow)

Tap [User Box].

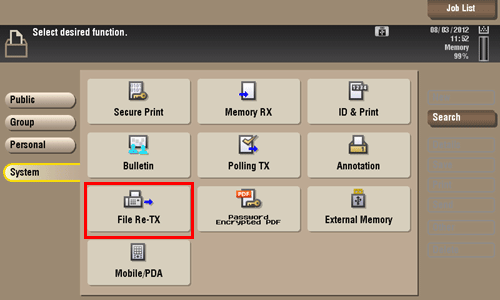

Tap [System] - [File Re-TX].

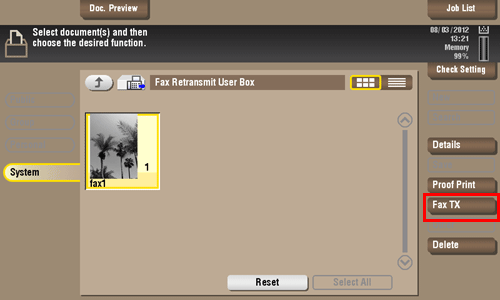

Select a fax to retransmit, then tap [Fax TX].

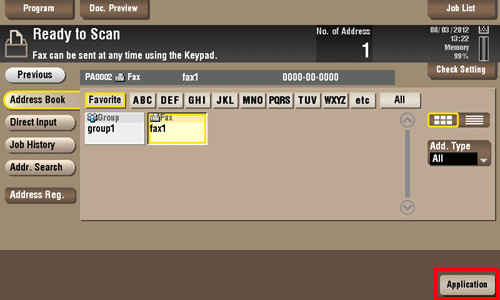

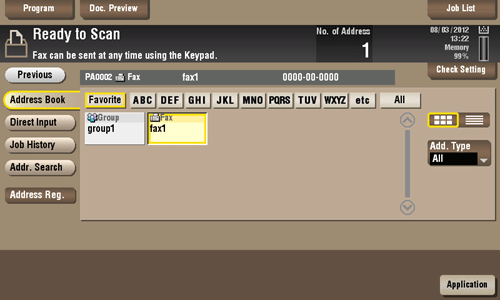

Specify the destination.
- For the destination setup, refer to Here.
Set the file send options if necessary.
Options
Reference
[Fax Header Settings]
Here
[Line Setting]
Here
Press the Start key.
Transmission begins.

When you retransmit a fax, it is deleted from the Fax Retransmit User Box automatically.
