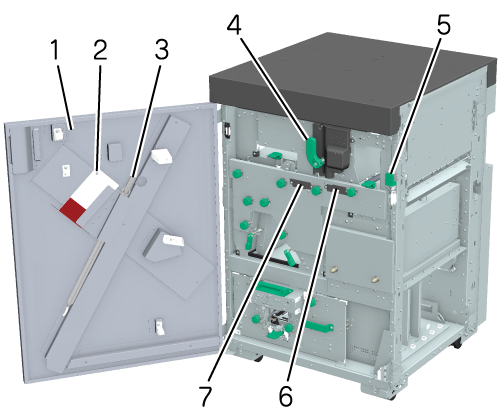

1

Intelligent Quality Optimizer Unit front door

When clearing a paper jam, open the door and remove the paper.

2

Cleaning plate

Cleans the conveyance path.

3

Cleaning bar

Cleans the Inline Scanner.

4

Lever [IQ7]

When clearing a paper jam, hold the lever and pull out the horizontal conveyance section. Then, remove the paper.

5

Lever [IQ1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

6

Inline Scanner1

Read lower surface of conveyed paper.

7

Inline Scanner2

Read upper surface of conveyed paper.

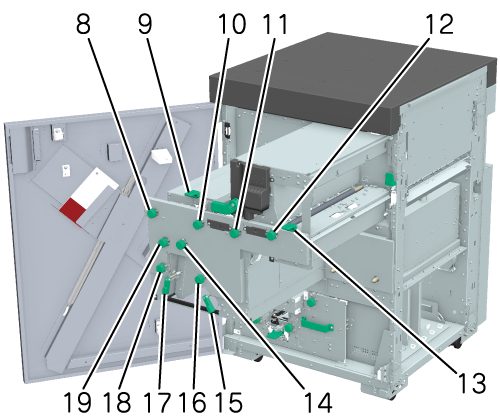

8

Knob [IQ6]

When clearing a paper jam, turn the knob to feed the paper through.

9

Lever [IQ8]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

10

Knob [IQ5]

When clearing a paper jam, turn the knob to feed the paper through.

11

Knob [IQ4]

When clearing a paper jam, turn the knob to feed the paper through.

12

Knob [IQ3]

When clearing a paper jam, turn the knob to feed the paper through.

13

Lever [IQ2]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

14

Knob [IQ9]

When clearing a paper jam, turn the knob to feed the paper through.

15

Lever [IQ11]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

16

Knob [IQ10]

When clearing a paper jam, turn the knob to feed the paper through.

17

Lever [IQ18]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

18

Knob [IQ19]

When clearing a paper jam, turn the knob to feed the paper through.

19

Knob [IQ20]

When clearing a paper jam, turn the knob to feed the paper through.

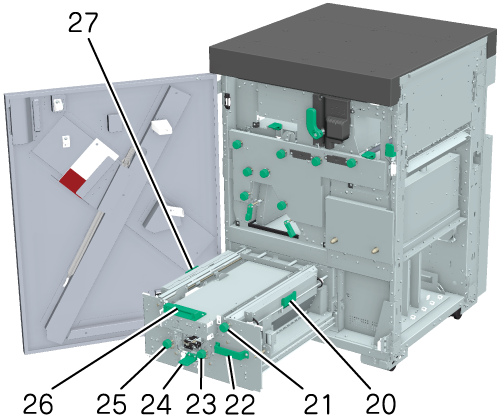

20

Lever [IQ21]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

21

Knob [IQ12]

When clearing a paper jam, turn the knob to feed the paper through.

22

Handle [IQ13]

Pull out when clearing a paper jam.

23

Knob [IQ14]

When clearing a paper jam, turn the knob to feed the paper through.

24

Lever [IQ15]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

25

Knob [IQ16]

When clearing a paper jam, turn the knob to feed the paper through.

26

Handle [IQ17]

Pull out when clearing a paper jam.

27

Lever [IQ22]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

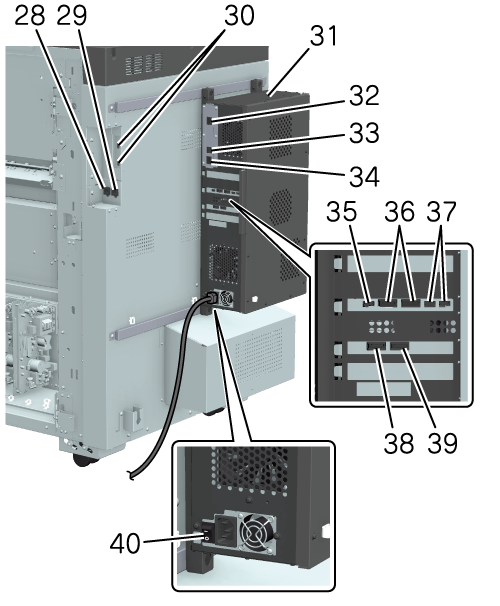

28

Network port

Connect to the machine.

29

Unusable port

This port is not available.

30

Auto Inspection Unit connection port

Used when mounting the Auto Inspection Unit AI-101.

31

Auto Inspection Unit AI-101 (optional)

Used to perform image analysis processing.

32

Service port

Port for customer engineer (CE) only.

33

USB port (USB 3.0/2.0 Type A)

Used when connecting external memory media (USB flash drive, USB-HDD).

USB port (USB 3.0/2.0 Type A) supports low power devices only. Please provide an external supply of power for devices that require a large amount of power.

34

Network port (10Base-T, 100Base-TX, 1000Base-T)

Connect Ethernet cable and use Web Utilities of Auto Inspection Unit AI-101.

35

Machine Connection Port

Connect to the machine.

36

Video Interface Kit connection port

Connect the cable of Video Interface Kit VI-514.

37

Intelligent Quality Optimizer Unit Connection Port

Connect to the Intelligent Quality Optimizer Unit IQ-601.

38

Machine Connection Port

Connect to the machine.

39

Image Controller connection port

Used when mounting the Image Controller.

40

Power switch

Turns the Auto Inspection Unit AI-101 power ON/OFF.

Name

Intelligent Quality Optimizer Unit IQ-601

Type

Automatic image reading correcting device

Function

1 path double-sided read inline scanner + spectrophotometer

Paper size

Widthwise 95 mm to 330.2 mm, lengthwise 139 mm to 1,300 mm / Widthwise 3.74" to 13", lengthwise 5.47" to 51.18"

Paper weight

40 g/m² to 450 g/m² / 10 lb Bond to 119 lb Bond

Dimensions

663 mm (W) e 821.6 mm (D) e 1,020 mm (H) / 26.1" (W) e 32.35" (D) e 40.16" (H)

Weight

Approx. 222 kg / 489.43 lb

Power

AC 100 V to 240 V, 50/60 Hz (supplied from power cord)

DC 24 V, 5 V (partially supplied from the front stage)

Maximum power consumption

750 W or less (including next stage connection options)
