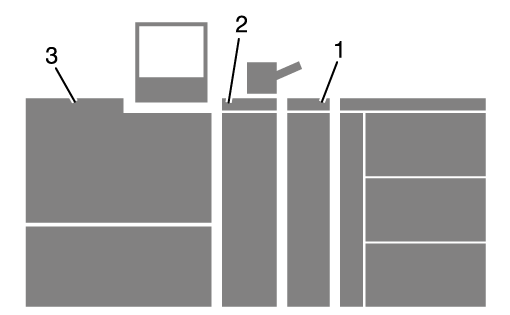

1

Intelligent Media Sensor IM-105

Measures the paper size for each page in real time.

2

Intelligent Media Sensor IM-104

Automatically determines the paper type and basis weight, and detects paper that differ from the settings.

3

Machine

This is the engine section that prints on paper.

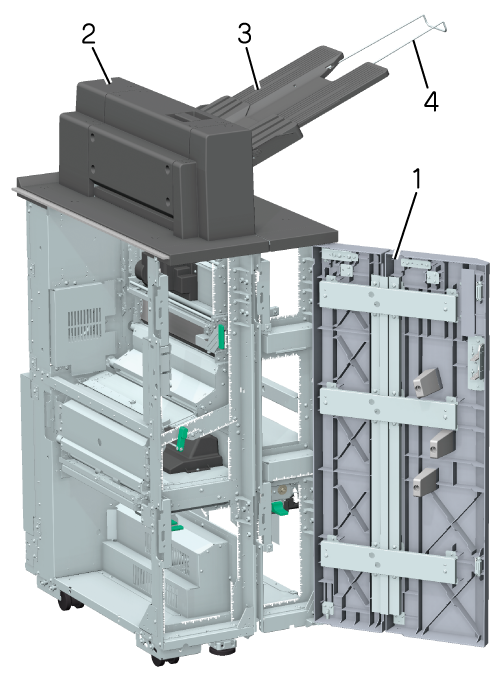

1

Intelligent media sensor front door

When clearing a paper jam, open the door and remove the paper.

When Intelligent Media Sensor IM-105 is mounted, the front doors of Intelligent Media Sensor IM-104 and Intelligent Media Sensor IM-105 open together.

2

Top cover

When clearing a paper jam, open the cover and remove the paper.

3

Purge tray

Ejects the detected paper or double-fed paper.

4

Purge tray extension

Pull out this tray when a large paper size is detected.

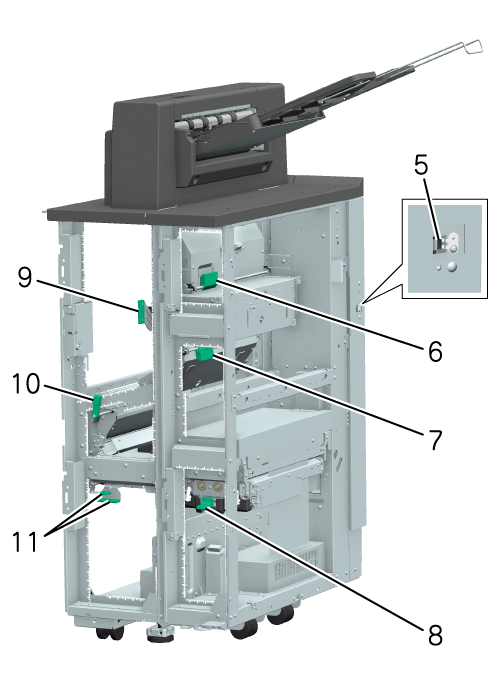

5

Machine Connection Port

Connect to the machine.

6

Lever [IM6]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

7

Lever [IM4]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

8

Lever [IM1]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

9

Lever [IM5]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

10

Lever [IM3]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

11

Lever [IM2]

When clearing a paper jam, hold the lever, open the guide, and remove the paper.

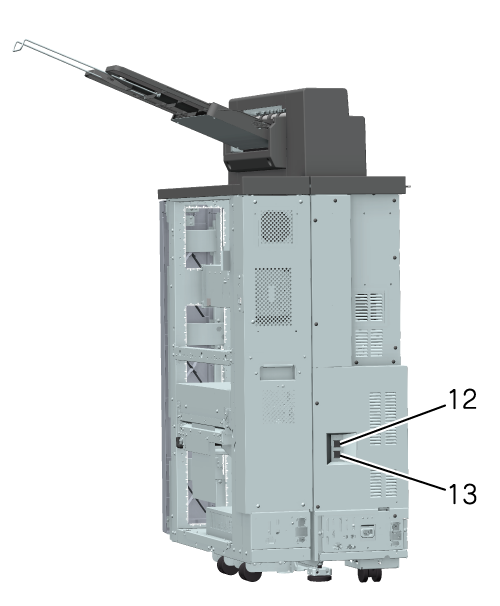

12

Network port

Connect to the machine.

13

Unusable port

This port is not available.

Name

Intelligent Media Sensor IM-104

Type

Paper property detection / Relay conveyor with purge function

Function

Paper setting support

The paper type, basis weight, and [Expert Adj.] value are automatically determined from the physical property value of the measured paper.

Also, the paper settings and paper profile estimated from the measurement results are also reflected in the tray.

Constant paper monitoring

Paper that does not match the [Paper Setting] is detected by measuring the physical property value of the paper fed through the tray.

Also, double-fed paper generated by the paper feed option is output to the Purge tray.

Paper size

Widthwise 100 mm to 330.2 mm, lengthwise 139.7 mm to 1,300 mm / Widthwise 3.94" to 13", lengthwise 5.5" to 51.18"

* The moisture content is not guaranteed for widths less than 130 mm / 5.12".

* Loading paper (banner paper) over 487.7 mm / 19.20" is not guaranteed.

Supported paper type

Conforms to the machine.

However, the following paper types are not subject to the measurement of paper conditions such as the paper type and basis weight, and are not subject to [Paper Error Check].

• Transparent paper / semi-transparent paper, synthetic resin sheets, metallized sheets, colored paper

• Prohibited paper (Paper thickness: 30 μm or less / 550 μm or more, Stiffness: 1,200 or more)

Paper weight

For straight output / media detection output (1-sheet feeding) :

52 g/m² to 450 g/m² / 14 lb Bond to 119 lb Bond

For automatic purge by paper double-feeding jams (2-sheet feeding) :

52 g/m² to 350 g/m² / 14 lb Bond to 93 lb Bond

Tray capacity (Purge tray)

50 sets (Loading height: 10 mm / 0.39", with full tank detection function)

* 1 sheet for paper of lengthwise 762.1 mm / 30.00" or larger.

Dimensions

253 mm (W) e 772 mm (D) e 1,262 mm (H) / 9.96" (W) e 30.39" (D) e 40.69" (H)

*Output tray, not including protrusion.

Weight

Approx. 81 kg / 178.57 lb

Power^*

AC 100 V to 240 V, 50/60Hz (supplied from power cord)

DC 24 V, 12 V (supplied to next stage)

Maximum power consumption^*

900 W or less

Name

Intelligent Media Sensor IM-105

Applicable unit

Intelligent Media Sensor IM-104

Type

Relay conveyor with paper size detection function

Function

Real-time paper size detection

The paper size is measured in real time for each page, and the results are fed back to the position where the back-side image is created.

Paper size

Widthwise 100 mm to 330.2 mm, lengthwise 139.7 mm to 1,300 mm / Widthwise 3.94" to 13", lengthwise 5.5" to 51.18"

* Real-time front and back image adjustment is not applicable for the paper (banner paper) over 487.7 mm / 19.20".

Supported paper type

Conforms to the machine.

However, the following paper types are not subject to the measurement of paper conditions such as the paper type and basis weight, and are not subject to [Paper Error Check].

• Transparent paper / semi-transparent paper, envelopes, special shaped paper such as tab paper

Paper weight

For straight output / media detection output (1-sheet feeding) :

52 g/m² to 450 g/m² / 14 lb Bond to 119 lb Bond

For automatic purge by paper double-feeding jams (2-sheet feeding) :

52 g/m² to 350 g/m² / 14 lb Bond to 93 lb Bond

Dimensions

177 mm (W) e 772 mm (D) e 968 mm (H) / 6.97" (W) e 30.39" (D) e 38.11" (H)

Weight

Approx. 36 kg / 79.37 lb

Power

Supplied from Intelligent Media Sensor IM-104

Maximum power consumption

100 W or less (including next stage connection options)
