What Is [Card Cutting]?
Overview
Set a trimmer profile for [Card Cutting]. You can set the finishing size and cut position.
NOTICE
All the following options are required to use this function.
- Trimmer Unit TU-504
- Job Separator JS-507
Setting Items
Screen access
Touch panel - [MACHINE] - [Trimmer Profile] - [Create] - Select [Card Cutting]. - [OK]
Touch panel - [MACHINE] - [Trimmer Profile] - Select a trimmer profile for Card Cutting. - [Edit]
Web Connection - Login screen - [Finisher Manager] - [TU-510 Profile Manager] - [Create] - Select [Card Cutting]. - [OK]
Web Connection - Login screen - [Finisher Manager] - [TU-510 Profile Manager] - Select a trimmer profile for Card Cutting. - [Edit]
Web Utilities - [Finisher Manager] - [TU-510 Profile Manager] - [Create] - Select [Card Cutting]. - [OK]
Web Utilities - [Finisher Manager] - [TU-510 Profile Manager] - Select a trimmer profile for Card Cutting. - [Edit]
Setting item | Description |
|---|---|
[SET INFO] | Display the information specified on the [Create] screen. You can arbitrarily change the profile name.
|

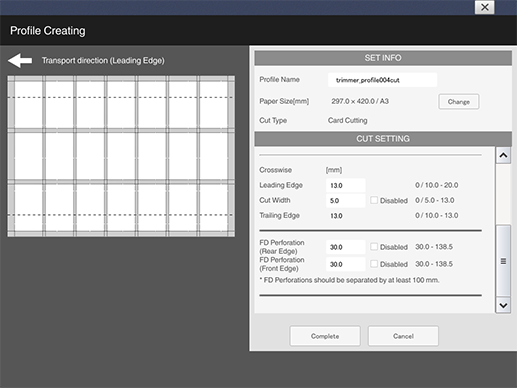

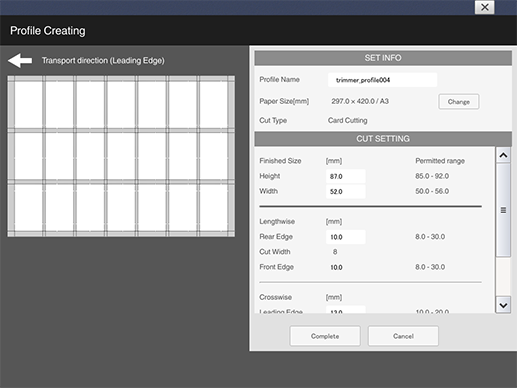

Set the finishing size for Four Edge Trim as well as the cut positions. |
