What Is [Four Edge Trim / Perforation]?
Overview
Set a trimmer profile for [Four Edge Trim / Perforation]. You can set the finishing size and perforation position.
NOTICE
All the following options are required to use this function.
- Perforation Unit PE-101 (Feed direction)
- Perforation Unit PE-102 (Crosswise direction)
Setting Items
Screen access

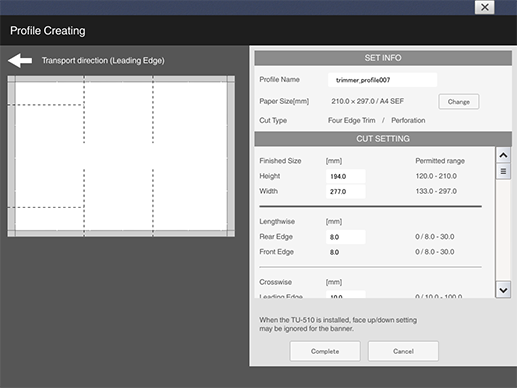

Touch panel - [MACHINE] - [Trimmer Profile] - [Create] - Select [Four Edge Trim]. - Select [Perforation]. - [OK]
Touch panel - [MACHINE] - [Trimmer Profile] - Select a trimmer profile of [Four Edge Trim / Perforation]. - [Edit]
Web Connection - Login screen - [Finisher Manager] - [TU-510 Profile Manager] - [Create] - Select [Four Edge Trim]. - Select [Perforation]. - [OK]
Web Connection - Login screen - [Finisher Manager] - [TU-510 Profile Manager] - Select a trimmer profile of [Four Edge Trim / Perforation]. - [Edit]
Web Utilities - [Finisher Manager] - [TU-510 Profile Manager] - [Create] - Select [Four Edge Trim]. - Select [Perforation]. - [OK]
Web Utilities - [Finisher Manager] - [TU-510 Profile Manager] - Select a trimmer profile of [Four Edge Trim / Perforation]. - [Edit]
Setting item | Description |
|---|---|
[SET INFO] | Display the information specified on the [Create] screen. You can arbitrarily change the profile name.
|
Set the finishing size for Four Edge Trim as well as the cut positions. |
