Registering a File for Polling ([Polling TX])

Polling TX

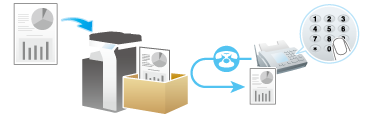

The Polling TX function stores a file beforehand on the internal hard disk and sends it out upon a request for reception (polling request) from the recipient.

The file for polling is stored in the Polling Transmission User Box in the System User Box, and then transmitted upon reception of a polling request.

Only one file can be stored in the Polling TX User Box.

Tips
  • This function cannot be used together with the following functions.
    Timer TX, Relay Distribution, Confidential Communication, ECM OFF, V.34 OFF, Quick Memory TX, Overseas TX, Password TX, Polling TX (Bulletin Board), Polling RX, Polling RX (Bulletin Board).

Related setting (for the administrator)
  • You can select whether to keep the file in the User Box after it is sent out upon a polling request from the recipient (Default: [Delete]). For details, refer to [File After Polling TX] .

Reference

Operation flow

  1. Load the original.

  2. Tap [Scan/Fax].

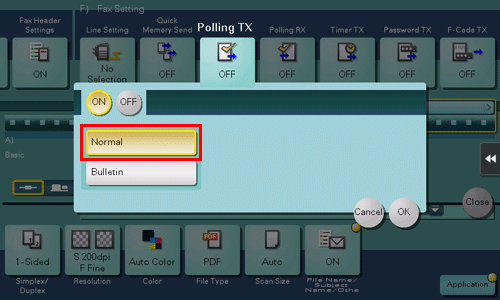

  3. Tap [Application] - [Fax Setting] - [Polling TX], then tap [ON].

  4. Check that [Normal] is highlighted, then tap [OK] .

  5. Press the Start key.

    The file is registered with the Polling TX User Box.
