[Color Dens. Result]

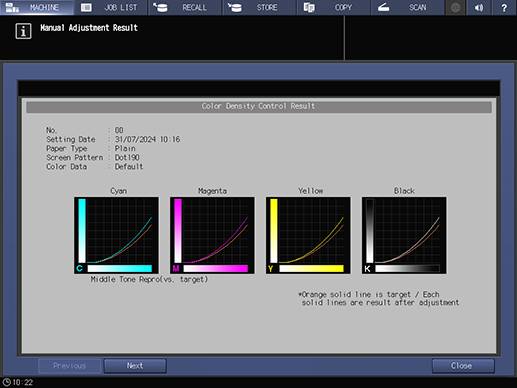

This screen displays the adjustment result of [Color Density Control].

You can check the target value and the measurement value after adjusting it.

If there is a problem with the adjustment results, perform [Color Dens. Manual] to make adjustments again.

NOTICE

One of the following options is required to use this function.

• Intelligent Quality Optimizer Unit IQ-601 and Video Interface Kit VI-514
• Relay Unit RU-518m

NOTICE

The following settings are required to use this function.

• Set [Use Color Density Control] to [ON] in [Basic Setting] of [Color Density Control].
• Perform [Color Density Control] to create a compensation value.

NOTICE

• The special toner-related functions are only available for AccurioPress C14010S / AccurioPress C12010S / AccurioPress C10500S.

NOTICE

The following options are required to use the special toner-related functions.

• 5th Color Kit CK-102
• 5th Color Kit for Main Body UK-121
• 5th Color Kit for Own Controller UK-224 (when Image Controller is mounted)
• 5th Color Kit for Fiery Controller UK-118 (when controller manufactured by Fiery is mounted)

Reference

• For details about [Basic Setting] in [Color Density Control], refer to [Basic Setting].
• For details about the procedure of [Color Dens. Manual], refer to [Adjustment / Maintenance].

Screen access
