Setting Up the Operating Environment
Installing BioDriver (USB-Driver) (Windows 7)
To use Data Administrator, set up the operating environment after configuring authentication settings of this machine.
For setup, install the BioDriver (USB-Driver) of the authentication unit, then install Data Administrator PlugIn for Biometric Authentication Unit AU-102.
Before setup, install Data Administrator V4.1.15000 or later in your computer. For details on installation, refer to the relevant Data Administrator manual.
To check the version of your Data Administrator, select the [Help] menu in Data Administrator, and also select [Version Information] - [Plug-in version].
The latest BioDriver (USB-Driver) can be downloaded from our Web site.
Turn the Main Power Switch of this machine off, and disconnect the authentication unit from this machine.
Install BioDriver (USB-Driver).
Connect the authentication unit to the USB port of your computer.
When connecting or disconnecting the USB cable, hold the plug. Otherwise, the machine may be damaged or a failure may occur.
Do not connect another USB device to the same port as for the authentication unit. Doing so reduces the USB power supply, resulting in an operation failure.
To use the USB hub, connect the self-power USB hub that supplies 500 mA or more.
Open the [Devices and Printers] window.
Open the [Control Panel], select [Hardware and Sound], and then click [View devices and printers]. When [Control Panel] is displayed in an icon view, double-click [Devices and Printers].

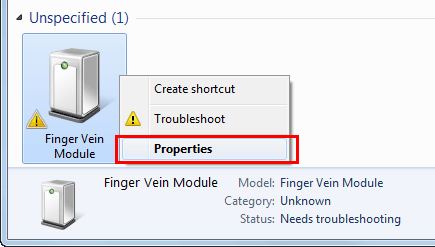

Right-click the device name or [Unknown Device] of the authentication unit displayed in the [Unspecified] category, then click [Properties].

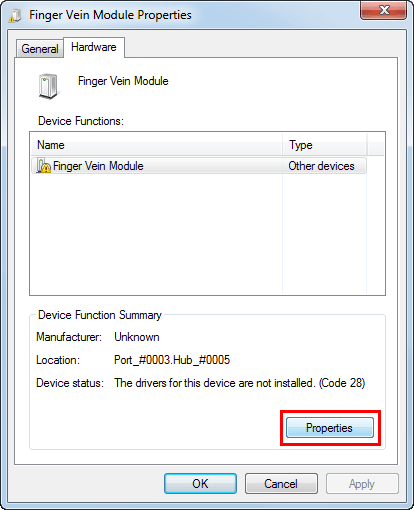

In the [Hardware] tab, click [Properties].

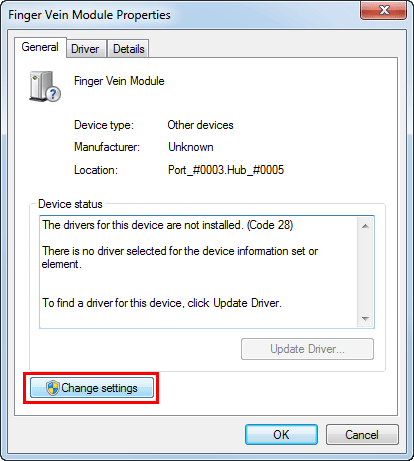

In the [General] tab, click [Change settings].

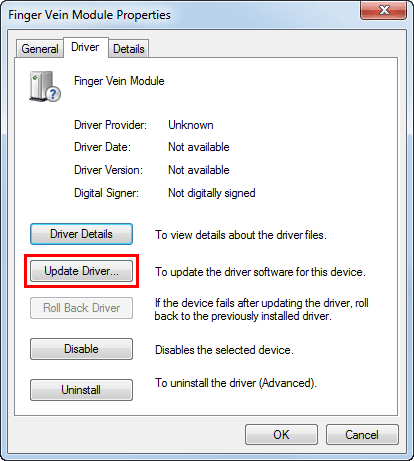

In the [Driver] tab, click [Update Driver...].

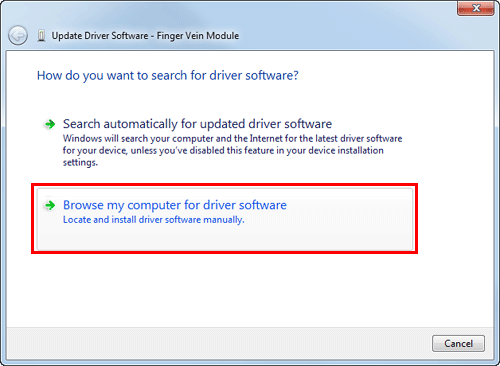

In the screen in which to select how to search the driver software, click [Browse my computer for driver software].
Click [Browse...].
Select the BioDriver (USB-Driver) file in the computer, then click [OK].
Click [Next], and perform the procedure by following the on-screen instructions.
If the [Windows Security] dialog box for verifying the publisher appears, click [Install this driver software anyway].
When the installation is complete, click [Close].
Then, install Data Administrator PlugIn for Biometric Authentication Unit AU-102. Refer to Here.
Installing BioDriver (USB-Driver) (Windows Vista)
To use Data Administrator, set up the operating environment after configuring authentication settings of this machine.
For setup, install the BioDriver (USB-Driver) of the authentication unit, then install Data Administrator PlugIn for Biometric Authentication Unit AU-102.
Before setup, install Data Administrator V4.1.15000 or later in your computer. For details on installation, refer to the relevant Data Administrator manual.
To check the version of your Data Administrator, select the [Help] menu in Data Administrator, and also select [Version Information] - [Plug-in version].
The latest BioDriver (USB-Driver) can be downloaded from our Web site.
Turn the Main Power Switch of this machine off, and disconnect the authentication unit from this machine.
Install BioDriver (USB-Driver).
Connect the authentication unit to the USB port of your computer.
The [Found New Hardware] dialog box appears.
When connecting or disconnecting the USB cable, hold the plug. Otherwise, the machine may be damaged or a failure may occur.
Do not connect another USB device to the same port as for the authentication unit. Doing so reduces the USB power supply, resulting in an operation failure.
To use the USB hub, connect the self-power USB hub that supplies 500 mA or more.

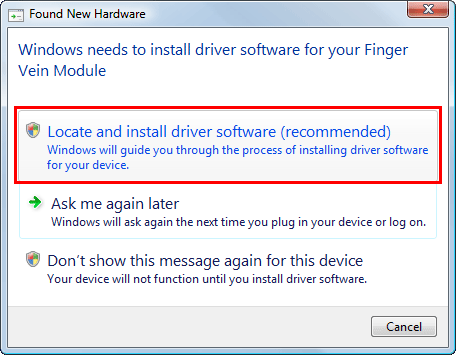

Select [Locate and install driver software (recommended)].

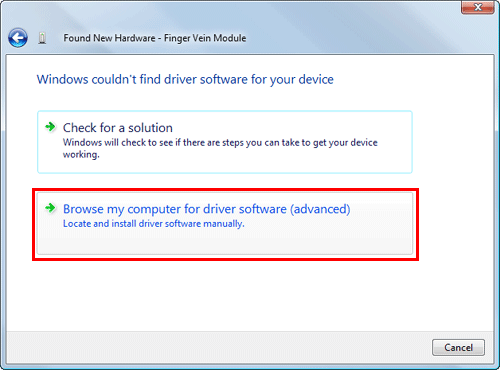

Click [Browse my computer for driver software (advanced)].
Click [Browse...].
Select the BioDriver (USB-Driver) file in the computer, then click [OK].
Click [Next], and perform the procedure by following the on-screen instructions.
When the installation is complete, click [Close].
Then, install Data Administrator PlugIn for Biometric Authentication Unit AU-102. Refer to Here.
Installing BioDriver (USB-Driver) (Windows XP)
To use Data Administrator, set up the operating environment after configuring authentication settings of this machine.
For setup, install the BioDriver (USB-Driver) of the authentication unit, then install Data Administrator PlugIn for Biometric Authentication Unit AU-102.
Before setup, install Data Administrator V4.1.15000 or later in your computer. For details on installation, refer to the relevant Data Administrator manual.
To check the version of your Data Administrator, select the [Help] menu in Data Administrator, and also select [Version Information] - [Plug-in version].
Administrator privileges are required to perform this task.
The latest BioDriver (USB-Driver) can be downloaded from our Web site.
Turn the Main Power Switch of this machine off, and disconnect the authentication unit from this machine.
Connect the authentication unit to the USB port of your computer.
The [Found New Hardware Wizard] dialog box appears.

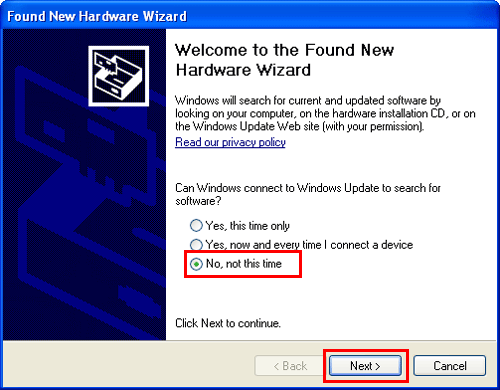

If the [Windows connect to Windows Update] screen appears, select [No, not this time], then click [Next].
When connecting or disconnecting the USB cable, hold the plug. Otherwise, the machine may be damaged or a failure may occur.
Do not connect another USB device to the same port as for the authentication unit. Doing so reduces the USB power supply, resulting in an operation failure.
To use the USB hub, connect the self-power USB hub that supplies 500 mA or more.

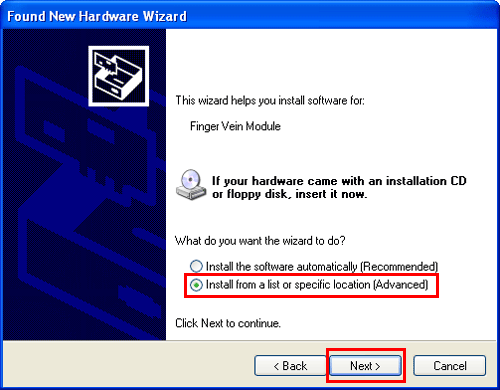

Select [Install from a list or specific location (Advanced)], then click [Next].

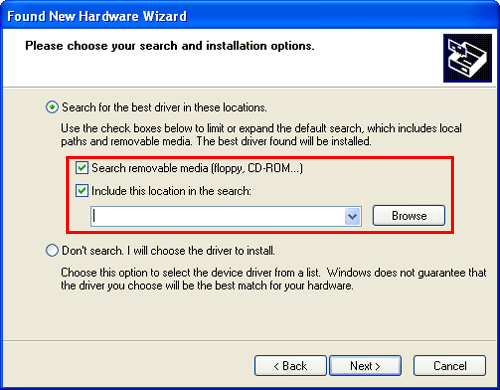

Under [Search for the best driver in these locations.], select [Include this location in the search:], then click [Browse].
Select the BioDriver (USB-Driver) file in the computer, then click [OK].
Click [Next], and perform the procedure by following the on-screen instructions.
When the installation completes, click [Finish].
Then, install Data Administrator PlugIn for Biometric Authentication Unit AU-102. Refer to Here.
Installing Data Administrator PlugIn for Biometric Authentication Unit AU-102
The latest Data Administrator PlugIn can be downloaded from our Web site.
Click setup.exe of Data Administrator PlugIn.

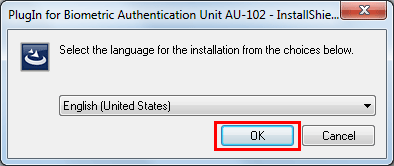

When necessary, select the setup language, and click [OK].
Follow the on-screen instructions to proceed with the installation.

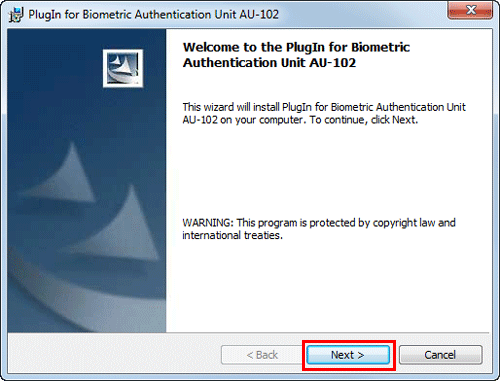

Click [Next].

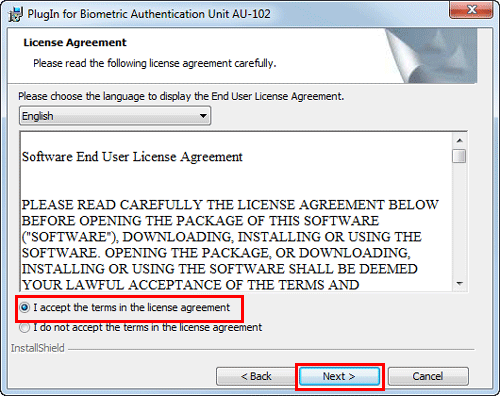

Select [I accept the terms in the license agreement], and then click [Next].

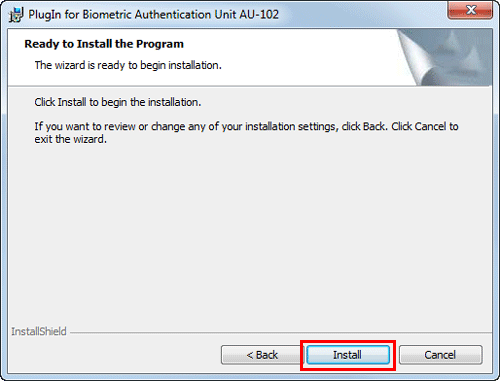

Click [Install].
When the installation completes, click [Finish].
This completes the installation of Data Administrator PlugIn for Biometric Authentication Unit AU-102, which completes the setup.
