Replacing a Staple Cartridge
Finisher FS-537 / Finisher FS-537 SD

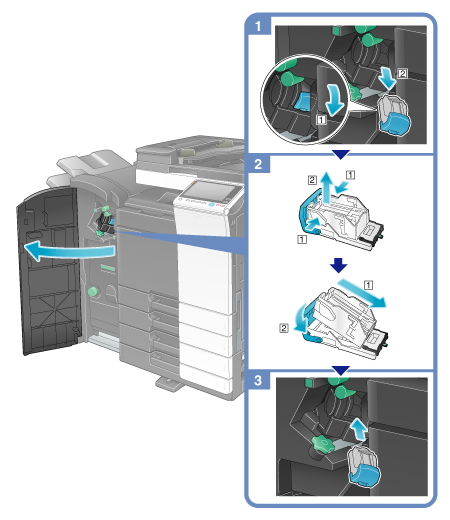

The figure shows the Finisher FS-537 SD equipped with Punch Kit PK-523, Z Folding Unit ZU-609, and Relay Unit RU-513.
Do not remove staples that remain in the machine. Otherwise, the stapling function will activate but no sheets will be stapled.
Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure.
Finisher FS-536 / Finisher FS-536 SD

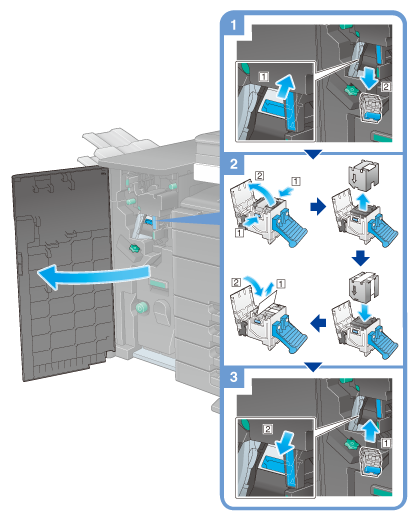

The figure shows the Finisher FS-536 SD equipped with Punch Kit PK-520 and Relay Unit RU-513.
Do not remove staples that remain in the machine. Otherwise, the stapling function will activate but no sheets will be stapled.
Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure.
Finisher FS-533

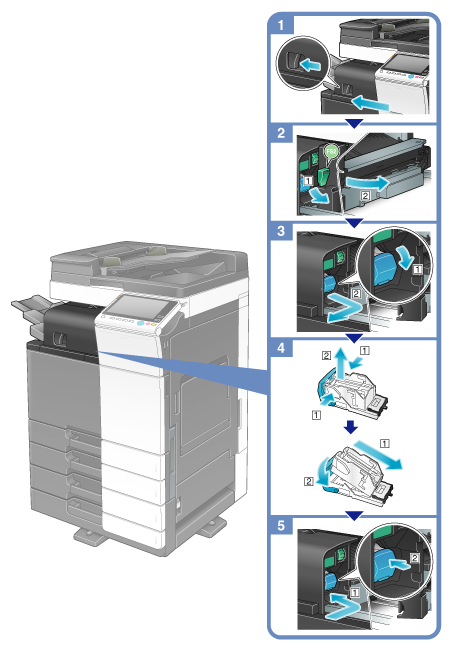

The figure shows the Finisher FS-533 equipped with Punch Kit PK-519.
Do not remove staples that remain in the machine. Otherwise, the stapling function will activate but no sheets will be stapled.
Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure.
