Checking Consumables Status
Users will be informed of time to replace a Toner Cartridge, Drum Unit, or Developing Unit via a message displayed on the screen.
Also, users can select [Utility] - [Check Consumable Life] to display the current status of consumables (consumption level) on the screen and check it.
When toner is running out in the Toner Cartridge
When it is almost time to replace a Toner Cartridge, an advanced warning message appears. Prepare a replacement Toner Cartridge based on the maintenance contract.
When it is time to replace a Toner Cartridge

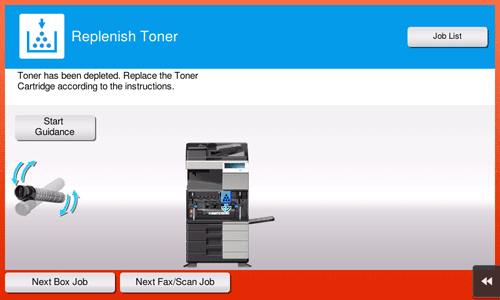

When it is time to replace a Toner Cartridge, a replacement prompt message appears. Replace it based on the maintenance contract. Tap [Start Guidance] to display the replacement procedure on the screen and check it.
For details on the replacement procedure, refer to Here.
When it is almost time to replace a Drum Unit

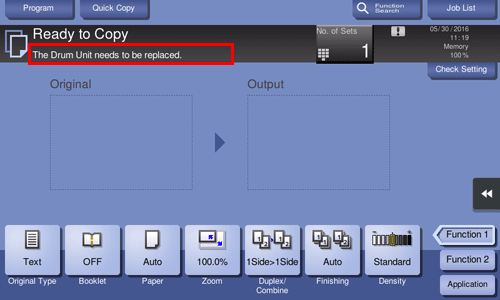

When it is almost time to replace a Drum Unit, an advanced warning message appears.
When it is time to replace a Drum Unit

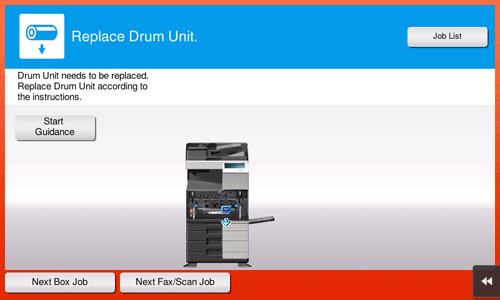

When it is time to replace a Drum Unit, a replacement prompt message appears. Replace it based on the maintenance contract. Tap [Start Guidance] to display the replacement procedure on the screen and check it.
A Drum Unit must not be replaced before the relevant message appears.
For details on the replacement procedure, refer to Here.
When it is almost time to replace a Developing Unit
When it is almost time to replace a Developing Unit, an advanced warning message appears.
When it is time to replace a Developing Unit

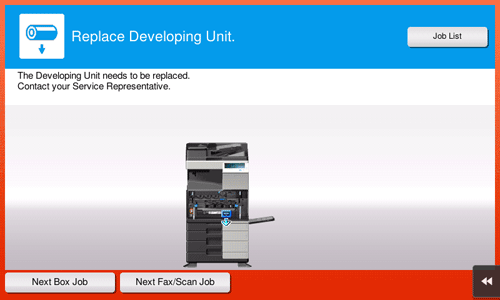

When it is time to replace a Developing Unit, a message appears to prompt you to contact your service representative. If the message appears, contact your service representative.
Checking the consumption level
Check the status of consumables (consumption level) using the Touch Panel. When necessary, each level can be printed in list form.

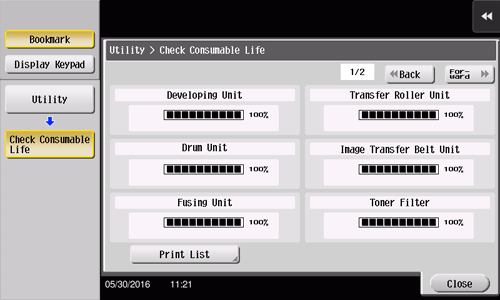

Tap [Utility] - [Check Consumable Life].
Check the status of consumables.
To print a consumption level list, tap [Print List], select paper, and then tap [Start].
If a warning such as for toner replacement or a paper jam occurs on this machine, it can be sent to a registered E-mail address. How to configure the setting is explained using Web Connection. For details, refer to Here.
