Measure the density adjustment values according to the paper and register.

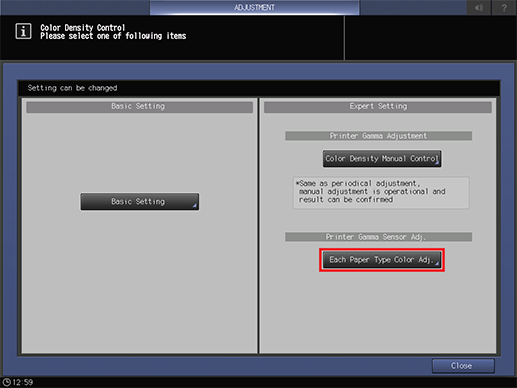

Press [Each Paper Type Color Adj.].
For details about the procedure, refer to [Each Paper Type Color Adj.].

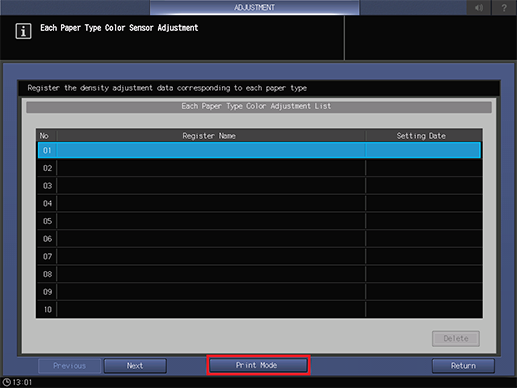

Select a number for registering the output density adjustment value, and press [Print Mode].

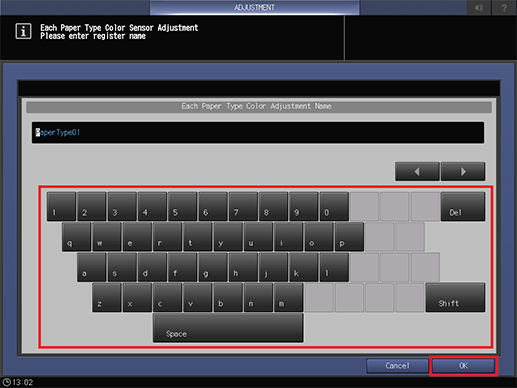

Fill in [Register Name] for paper wise color adjustment and press [OK].

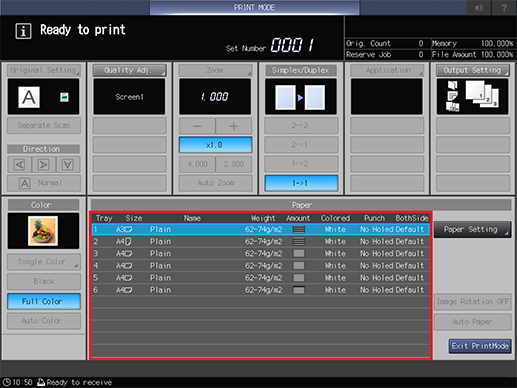

Press [Quality Adj.], and then press [Screen Pattern]. Select the screen you want to adjust, and return to the [PRINT MODE] screen.
Set the paper size for the chart, and press Start on the Control panel.
The chart is output and the adjustments performed automatically.
