Use Intelligent Quality Care Unit IQ-501 to automatically adjust the density balance.

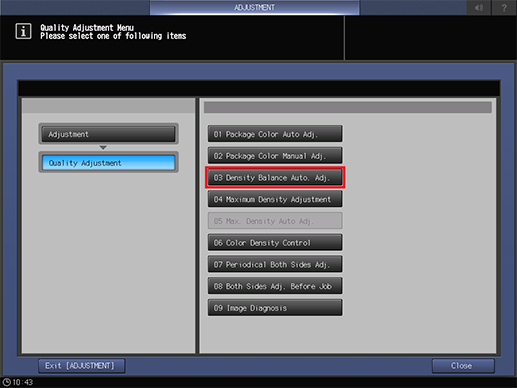

Press [Density Balance Auto. Adjustment].
For details about the procedure, refer to [Density Balance Auto. Adj.] (With Intelligent Quality Care Unit IQ-501 Mounted).

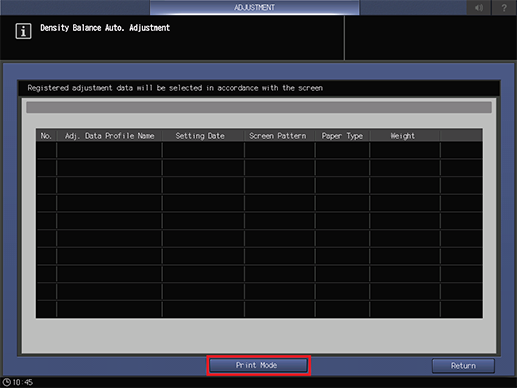

Press [Print Mode], [Quality Adj.], and then [Screen Pattern]. Select the screen to adjust, and return to the [PRINT MODE] screen.
Set the paper size for the chart, and press Start on the Control panel.

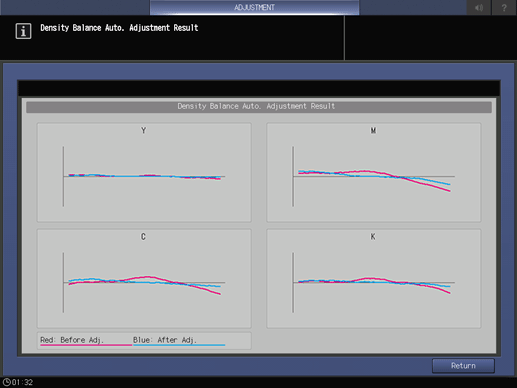

The [Density Balance Auto. Adjustment Result] screen is displayed after the chart is output, and then the adjustment is complete.
