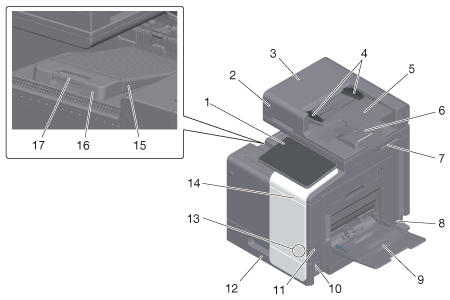

No. | Name | Description |
---|---|---|
1 | Control Panel | Used to configure various settings in this machine. |
2 | Automatic Document Feeder | Automatically feeds and scans originals by page. This unit scans a 2-sided original by only requiring the paper be fed into the machine once without reversing. This unit is referred to as ADF in the manual. |
3 | ADF Feed Cover | Open the ADF when clearing a paper jam. |
4 | Lateral Guide | Adjust this guide along the width of the original. |
5 | Original Tray | Load the original face up in this tray. |
6 | Original Output Tray | The scanned original is fed out onto this tray. |
7 | Document Stopper | Used to prevent the output original from falling. |
8 | Power Connection | Connect the power cord to this inlet to supply power to this machine. |
9 | Bypass Tray | Used to print data on non-standard size paper or envelopes. |
10 | Main Power Switch | Press this switch to turn the machine on or off. |
11 | USB Port (Type A) USB2.0/1.1 | Used to connect a USB flash drive to this machine. |
12 | Tray 1 | Allows you to load up to 500 sheets of plain paper. |
13 | Mobile Touch Area | This area is used to associate this machine with an NFC-compatible Android terminal or an iOS terminal compatible with Bluetooth LE. |
14 | Data Indicator | Flashes or lights up to indicate the data receiving status on this machine. For details, refer to Data Indicator. |
15 | Tray Attachment | Prevents the ejected paper from curling. Tray Attachment is included in this machine. Mount this unit when the ejected paper curls. When Tray Attachment is mounted, the ejected paper capacity will be smaller than when it is not mounted. |
16 | Output Tray | Outputs printed pages. |
17 | Tray Extension | When printing on paper larger than A4 (8-1/2 e 11), pull out this tray. |
No. | Name | Description |
---|---|---|
1 | Original Glass | Used to load the original. |
2 | Slit Scan Glass | Used to scan an original image when using the ADF. |
3 | Original Pad | Fixes the loaded originals. |
No. | Name | Description |
---|---|---|
1 | Ethernet (LAN) Port (1000Base-T/100Base-TX/10Base-T) | Connect to this port when using this machine as a network printer or network scanner. |
2 | USB Port (Type B) | Connect to this port when using this machine as a USB-connected printer. |
3 | LINE (telephone line) Jack | Used to connect a general telephone subscriber line. |
4 | Jack for connecting a telephone (TEL) | Used to connect a telephone cord. |

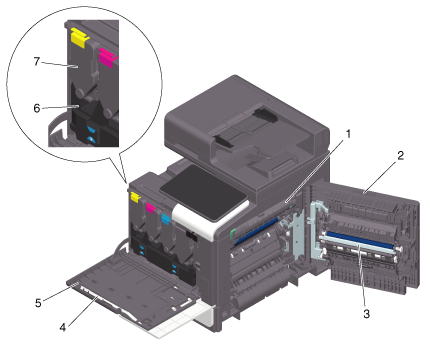

No. | Name | Description |
---|---|---|
1 | Fusing Unit | Used to fuse toner to paper using heat and pressure. |
2 | Right Door | Open this door to clear a paper jam. |
3 | Paper Transport Unit | Transports paper. When performing 2-sided printing, this unit reverses paper. |
4 | Printhead Cleaner | Used to clean the surface of the Print Head Glass. |
5 | Front Door | Open this door to replace the Toner Cartridge or Waste Toner Bottle, and to clean the Print Head Glass. |
6 | Waste Toner Bottle | Used to collect used waste toners. |
7 | Toner Cartridge | This machine provides Toner Cartridge in four colors: cyan (C), magenta (M), yellow (Y), and black (K). A full-color image is created by combining the four toner colors. |
