When a paper jam is occurring on the Post Inserter PI-505

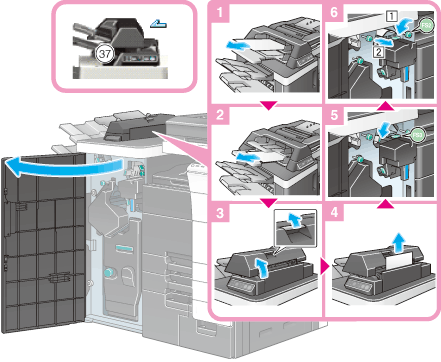

The following illustrations show how to fix a paper jam occurring on the Post Inserter PI-505.

Tips

The figure above shows the optional Finisher FS-535 equipped with Saddle Stitcher SD-512, Punch Kit PK-521, and Post Inserter PI-505.

NOTICE

When returning the Upper Unit of the Post Inserter PI-505, be careful not to get your fingers caught.
