Sending a fax via relay station (Relay Distribution)

Relay Distribution

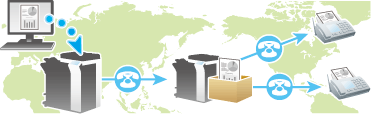

The Relay Distribution function distributes a fax to the preset recipients using relay stations.

If you have grouped the relay stations and recipients by area, you can reduce the total communication cost than the broadcasting of fax to all destinations. This is useful for broadcasting to distant locations.

Tips
  • The destination machine (the relay station) must have the F-code function.
  • When using the relay distribution, you need to check both the number of the Relay User Box defined for the relay station and the password.

How to Send

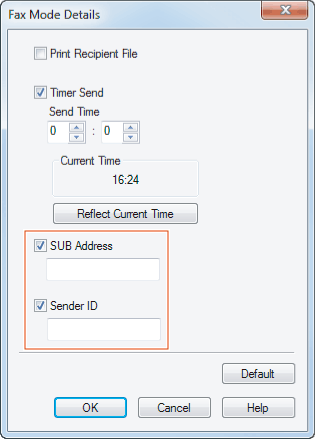

  1. From the [FAX Transmission Popup] screen, select [Fax Mode Setting Details...].

    The [Fax Mode Details] screen opens.

  2. Specify the recipient's Confidential User Box.
    • [SUB Address]: Enter the Relay User Box number of the recipient.
    • [Sender ID]: Enter the password for the recipient's Relay User Box.
  3. Click [OK].
