Home>Network Fax>Other option settings (Application settings)

Network Fax

Other option settings (Application settings)

Scanning after erasing text and shadows in the margins of an original ([Frame Erase])

Erases an area of an identical specified width along the four sides of an original. You can specify the width to be erased for each side.

This is convenient when you want to erase the reception record of the header and footer of a fax, or shadow of punch holes on the original.

For details, refer to Here.

Sharpening the border between text etc. ([Sharpness])

Sharpen the edges of the image such as text in the table and graphic, to improve legibility.

Smoothen rough contours of an image or sharpen blurred images.

For details, refer to Here.

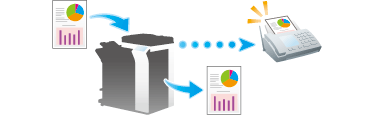

Sending and printing at the same time ([Save & Print])

You can print at the same time when sending an Internet fax or IP address fax.

For details, refer to Here.

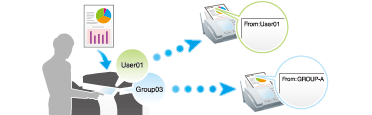

Changing the sender name before sending a fax ([Fax Header Settings])

Add the sender information to the scanned original data such as machine name, company name (sender name), and E-mail address.

The sender name, which is specified by default, is automatically added to a fax. If multiple sender names are registered, you can change the default sender name.

For details, refer to Here.

Related setting (for the administrator)
  • By registering multiple sender names, you can use different sender names depending on the destination. For details on the registration procedure, refer to Here ([Sender]).
  • You can specify the position where to print sender information (default: [Outside Body Text]). When necessary, you can disable printing of the sender information. For details, refer to Here.
