Home>Network Fax>Checking the finish before sending

Checking the finish before sending

  1. Load the original.
  2. Tap [Scan/Fax].
  3. Specify the destination.
  4. Configure the option settings for fax transmission as necessary.
  5. Press Preview.

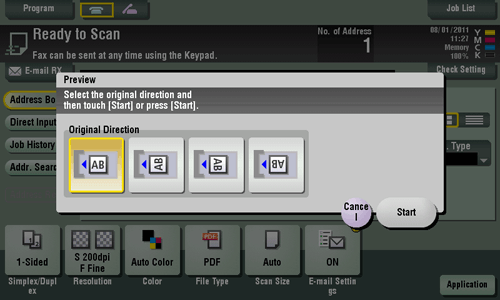

  6. Select the original direction.
  7. Tap [Start] or press the Start key.

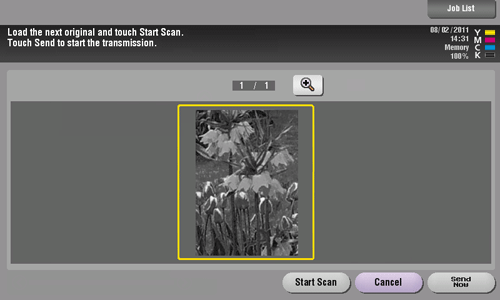

    The original is scanned, and the Preview screen appears.

  8. Tap .

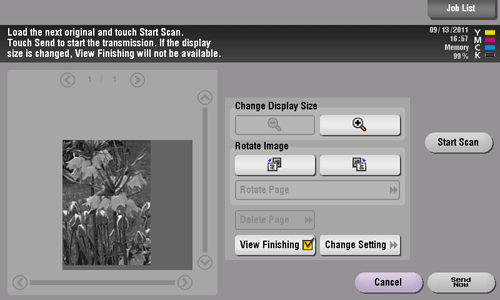

    The screen used to change the preview display appears.
    • To continue to scan originals, load the original, and tap [Start Scan].
    • To start sending, tap [Send Now] or press the Start key.
  9. Check the preview display, and rotate the image or change settings as needed.
    • To continue to scan originals, load the original, and tap [Start Scan].
  10. After all originals are scanned, tap [Send Now] or press the Start key.

    Transmission begins.

Related setting (for the administrator)
  • Normally, preview images are displayed after all the original data has been scanned. When necessary, you can use the real-time preview to display preview images on a page basis while scanning the originals (default:[OFF]). For details, refer to Here ([Realtime Preview]).
  • You can select whether to display the screen for selecting the original loading direction after pressing the Preview key (default: [ON]). For details, refer to Here([Original Direction Confirmation Screen]).
  • You can select conditions to display a preview image (default: [Preview Settings Screen]). For details, refer to Here ([Preview Display Conditions (Registered Application)]).
