Sending a fax using an additional line ([Select Line])

Using an additional line

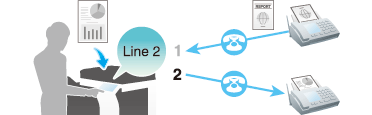

When two lines are operating, you can select a line for sending a fax.

Faxes are usually transmitted using an idle line. Lines can be used to transmit faxes according to usages 's situation.

Tips
  • When registering destinations with an address book, you can configure the lines used to transmit faxes in addition to registering fax numbers.
  • This function cannot be used together with the following functions.
  • Polling TX, Polling TX (Bulletin Board).

Operations required to use this function (for administrators)

Configure a specific function for additional line. If you configure a function that differs from the one assigned to the first line, you can use the two lines differently.

For details on how to configure the settings, refer to Here.

Tips
  • You cannot specify a line if [Multi Line Usage Settings] is set to [RX Only].

Operation flow

  1. Load the original.
  2. Tap [Scan/Fax].
  3. Specify the destination.

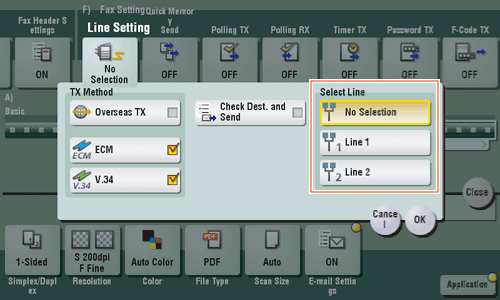

  4. Tap [Application] - [Fax Setting] - [Line Setting].
  5. Select a line used for transmission in [Select Line], then tap [OK].
    • If [No Selection] is selected, an idle line is used. If both lines are idle, Line 1 takes precedence.
  6. Press the Start key.

    Transmission begins.
