Sending a fax after specifying a relay station ([F-Code TX])

Relay distribution

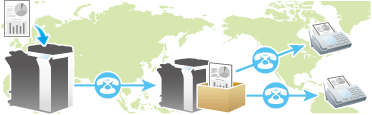

The Relay Distribution function sends a fax to a relay machine, which distributes the received fax to a pre-registered group of destinations.

Overall communications costs can be reduced by grouping relay stations and destinations by area, compared to the case in which faxes are broadcast to all destinations. This function is useful when broadcasting faxes to distant locations.

Tips
  • The destination machine (the relay machine) needs to have the F-code function.
  • You need to check both the Relay User Box number specified on the relay machine and the password for relay distribution.
  • This function cannot be used together with the following functions:
  • Password TX, Polling TX, Polling TX (Bulletin Board), Polling RX, Polling RX (Bulletin Board).
Related setting (for the administrator)
  • You can enable or disable F-Code TX (Default: [ON]). For details, refer to Here.
Reference
  • This machine can also be used as a relay station. For details, refer to Here.

Operation flow

  1. Load the original.
  2. Tap [Scan/Fax].
  3. Specify the fax number of the relay station.
  4. Tap [Application] - [Fax Setting] - [F-Code TX], then tap [ON].
  5. Enter the [SUB Address] and [Sender ID], then tap [OK].
    • [SUB Address]: Enter the relay user box number.
    • [Sender ID]: Enter the relay TX password for the relay distribution.
  6. Press the Start key.

    Fax transmission to the relay station begins. Faxes received by a relay station are delivered to destinations registered with the relay station.
