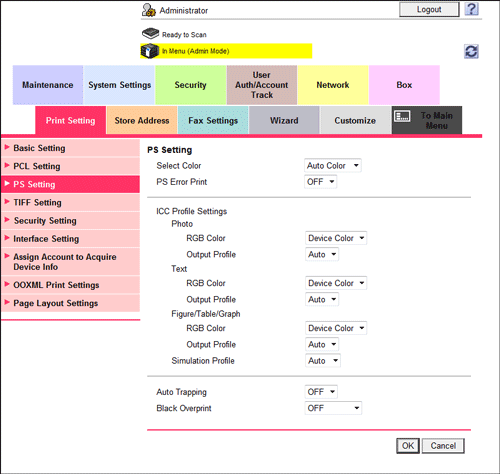

Specifying the default PS print settings

[Select Color]

Select colors for printing.

• [Auto Color]: The color mode is automatically selected according to the original color.

• [Gray Scale]: The original is printed in black and white regardless of whether the original is in color or in black and white.

• [2 Color]: The original is printed in the two specified colors. The gray and color areas of a color original are printed using combinations of the colors specified in [2-Color].

[Auto Color] is specified by default.

[PS Error Print]

Specify whether to print error information when an error occurs during PS rasterization.

[OFF] is specified by default.

[ICC Profile Settings]

Specify the default profile setting to be displayed in the printer driver.

If the details of [ICC Profile Settings] differ between the machine and the printer driver, the settings of the printer driver are given priority.

[Photo]

Select the default setting for RGB color and output profile for photographs.

[RGB Color]: [Device Color]/[Output Profile]: [Auto] are selected by default.

[Text]

Select the default setting for RGB color and output profile for text.

[RGB Color]: [Device Color]/[Output Profile]: [Auto] are selected by default.

[Figure/Table/Graph]

Select the default setting for RGB color and output profile for figures, tables, and graphs.

[RGB Color]: [Device Color]/[Output Profile]: [Auto] are selected by default.

[Simulation Profile]

Select the default setting for simulation profile.

If [Simulation Profile] is set to [Auto] while [PS Designer Settings] is set to [No], use a simulation profile based on your processing. For details on [PS Designer Settings], refer to Here.

[Auto] is specified by default.

[Auto Trapping]

Select whether to superimpose neighboring colors to print so as to prevent white space being generated around a picture.

Selecting [ON] prevents the generation of white lines at the boundaries of colors in graphs or figures.

[OFF] is specified by default.

[Black Overprint]

Select whether to print so as to prevent white space being generated around a black character or figure.

• [Text/Figure]: Adjacent portion between a text and figure is overprinted with black. Use this setting when a white line appears around the black portion in a graph or figure.

• [Text]: Black is overprinted on the adjacent colors in the text portion. Use this setting when a white line appears around the text.

• [OFF]: The data is printed as is without overprinting with black.

[OFF] is specified by default.
