Sending (Basic Operation Flow)

  1. Tap [User Box].

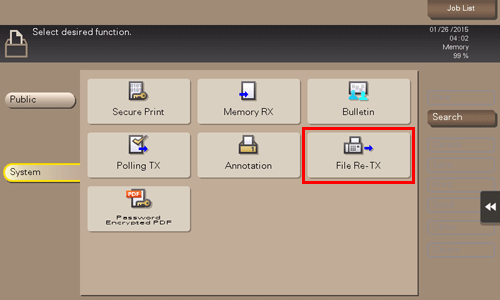

  2. Tap [System] - [File Re-TX].

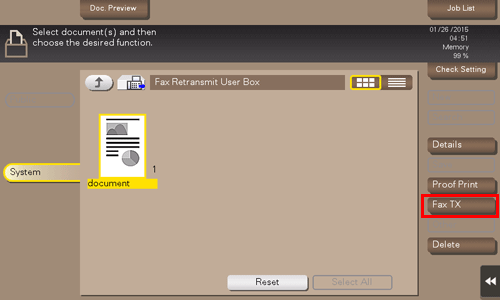

  3. Select a fax to retransmit, then tap [Fax TX].

    • You can also long-tap the target file to display the menu icon, then drag and drop it to to get the same result.

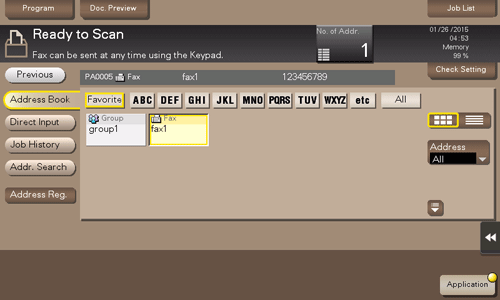

  4. Specify the destination.

    • For the destination setup, refer to Here.

  5. Set the file send options if necessary.

    Options

    Reference

    [Fax Header Settings]

    Here

    [Line Setting]

    Here

  6. Press the Start key.

    Transmission begins.

  • When you retransmit a fax, it is deleted from the Fax Retransmit User Box regardless of whether the transmission was successful or failed.
