About This Machine

Checking the List of Optional Components

No.

Name

Description

1

Main unit

Scans the original in the scanner section, and prints a scanned image in the printer section.

This unit is referred to as "machine", "main unit", or "754e/654e" in the manual.

2

Authentication Unit AU-102

Performs user authentication by scanning vein patterns in the finger.

The Working Table WT-506 or Working Table WT-509 is required to install Authentication Unit AU-102.

This unit is referred to as an Authentication Unit in the manual.

3

Authentication Unit AU-201

Performs user authentication by scanning information recorded on the IC card.

The Mount Kit MK-735 is required to install Authentication Unit AU-201.

This unit can also be installed on the Working Table WT-506 or Working Table WT-509.

This unit is referred to as an Authentication Unit in the manual.

4

Working Table WT-509

This is used to move the Control Panel. This is also used when the Authentication Unit is installed.

5

Working Table WT-506

Provides an area to temporarily place an original or other materials. This is also used when the Authentication Unit is installed.

6

Keypad KP-101

It is equipped on the side of the Control Panel.

Allows you to enter numbers by using the Hardware Keypad.

7

Keyboard Holder KH-102

Install this holder to use a external keyboard.

For details on external keyboards, contact your service representative.

8

Fax Mount Kit MK-728

This unit is required to install FAX Kit FK-508.

This option can be used in North Amerca.

9

FAX Kit FK-508

Used to add telephone lines.

Fax Mount Kit MK-728 is required to install FAX Kit FK-508.

This option can be used in North Amerca.

10

Mount Kit MK-715

Used to print data on banner paper.

11

Large Capacity Unit LU-301

Allows you to load up to 3000 sheets of 8-1/2 11 (A4) size.

This unit is referred to as a Large Capacity Unit in the manual.

12

Large Capacity Unit LU-204

Allows you to load up to 2500 sheets of SRA3 or 11 17 (A3) size.

To change the paper size, contact your service representative.

This unit is referred to as a Large Capacity Unit in the manual.

13

Finisher FS-534

Sorts, groups and staples printed paper before outputting it.

14

Saddle Stitcher SD-511

Install this unit onto Finisher FS-534. This unit supports the fold/bind function.

It is referred to as Saddle Stitcher in the manual.

15

Punch Kit PK-520

Install this unit onto Finisher FS-534.

This unit supports the punching function.

16

Saddle Stitcher SD-512

Install this unit onto Finisher FS-535. This unit supports the fold/bind function.

It is referred to as Saddle Stitcher in the manual.

17

Finisher FS-535

Sorts, groups and staples printed paper before outputting it.

18

Punch Kit PK-521

Install this unit onto Finisher FS-535.

This unit supports the punching function.

19

Post Inserter PI-505

Install this unit onto the Finisher FS-535 to enable insertion of a cover sheet into copied or printed sheets. This unit also allows you to manually operate the finisher (only the lower tray is available).

20

Job Separator JS-602

Install this unit onto Finisher FS-535.

Collects printed pages.

This unit is referred to as Job Separator in the manual.

21

Z Folding Unit ZU-606

Install this unit onto the Finisher FS-535 to enable Z folding or punching holes.

This unit is referred to as a Z Folding Unit in the manual.

22

Output Tray OT-503

Collects printed pages.

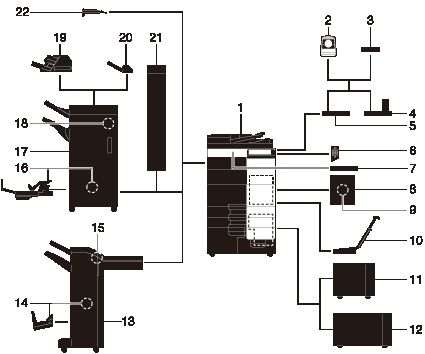

The following options are built into this machine and are not shown in the figure above.

23

Fax Kit FK-511

Used to operate this machine as a fax machine. Alternatively, this kit allows more telephone lines to be connected.

24

Stamp Unit SP-501

Stamps a scanned original when sending a fax. This unit allows you to check that the original has been scanned.

25

Spare TX Marker Stamp 2

A replacement stamp for the Stamp Unit SP-501.

26

Local Interface Kit EK-604

Install this unit when using the voice guidance function.

This unit is equipped with a speaker.

27

Local Interface Kit EK-605

Install this unit when connecting to the external keyboard, voice guidance function, or Bluetooth-enabled device.

This unit is equipped with a speaker and a receiving device for Bluetooth communication.

For details on external keyboards, contact your service representative.

28

Security Kit SC-508

Supports the copy guard and password copy functions to prevent unauthorized copying.

29

i-Option LK-101 v3

Supports the web browser function that is one of the advanced functions.

30

i-Option LK-102 v3

Supports the PDF processing function that is one of the advanced functions.

31

i-Option LK-104 v3

Supports the voice guidance function that is one of the advanced functions.

32

i-Option LK-105 v3

Supports the searchable PDF function that is one of the advanced functions.

33

i-Option LK-106

Used to add a bar code font that is one of special fonts.

34

i-Option LK-107

Used to add a unicode font that is one of special fonts.

35

i-Option LK-108

Used to add an OCR font that is one of special fonts.

36

i-Option LK-110

Used to add an advanced function that converts a file into the DOCX or XLSX type or generates highly-functional and high-quality data.

i-Option LK-110 includes the function licenses for i-Option LK-102 v3 and i-Option LK-105 v3. If you purchase i-Option LK-110, you do not need to purchase i-Option LK-102 v3 or i-Option LK-105 v3.

For details on the addable functions, refer to Here.

37

i-Option LK-111

Supports the ThinPrint function that is one of the advanced functions.

38

i-Option LK-115

You can use TPM (Trusted Platform Module) that is one of the advanced functions. Security enhancement is realized by encrypting confidential information such as certificates and passwords of this machine.

39

Upgrade Kit UK-204

  • Install this unit when using i-Option LK-101 v3, LK-102 v3, LK-104 v3, LK-105 v3, LK-106, LK-107, LK-108, or LK-110.

  • Install this unit when using My Address in association with My Panel Manager.

  • Install this unit when using the Overlay or Registered Overlay function.

40

Mount Kit MK-735

Required to have Authentication Unit AU-201 built in to the main unit.

41

Heater HT-508

Prevents paper in a paper tray from being affected by humidity.

  • This option may not be available depending on the sales area.
