Q. Can I copy on custom size paper?
Operation procedure: Copying on paper of a custom size
The following explains how to load custom size paper into the Bypass Tray.
Load the original.
Load custom size paper into the Bypass Tray with the print side facing down.

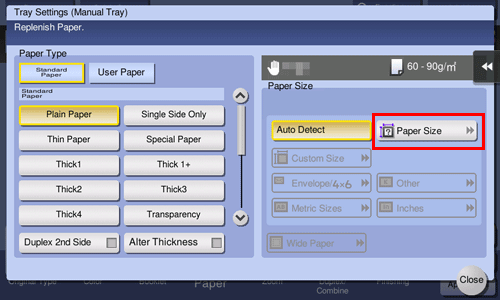

The screen for selecting the paper type and paper size appears.

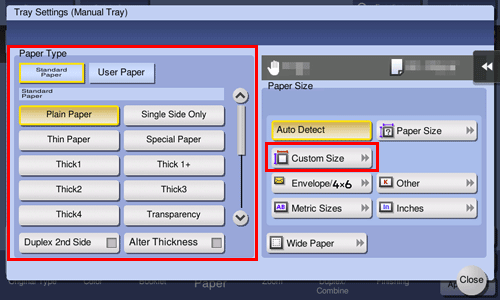

Select one from the paper type options, then tap [Custom Size].

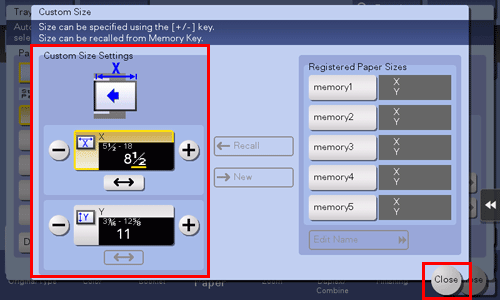

In [Custom Size Settings], specify the paper size by entering values for the lengths along [X] and [Y], then tap [Close].
To specify a size registered in the memory, select the desired size from [Registered Paper Sizes], then tap [Recall].
Press the Start key to start copying of the original.
Operation procedure: Registering a custom size of paper in memory
Tap [Copy].

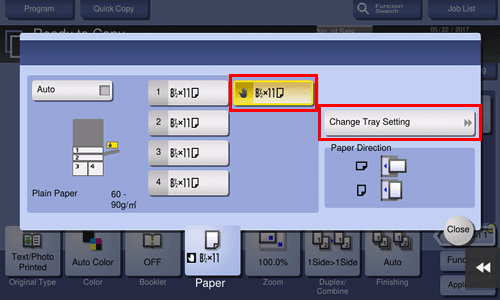

Tap [Paper], select Tray1, Tray2, or Bypass Tray, and tap [Change Tray Setting].
Tap [Paper Size].
Load a single sheet to be measured on the ADF or Original Glass.
NOTICE
If a sheet is loaded on the Original Glass, leave the Original Cover open.- If the weight of thick paper exceeds the paper weight that can be loaded into the ADF, an ADF failure may occur. For paper with a weight that exceeds the paper weight that can be loaded into the ADF, load the paper on the Original Glass. For details on the paper weight that can be loaded into the ADF, refer to [Original available for ADF] .
Press the Start key.

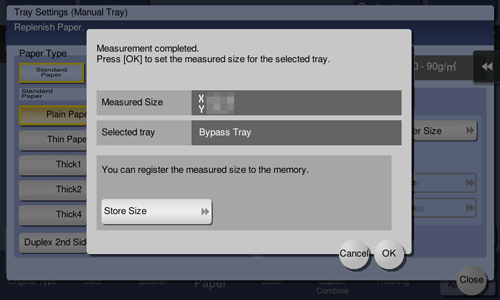

When measurement is completed, the screen for confirming the measurement result is displayed.
Tap [Store Size].
In [Registered Paper Sizes], select the key of the memory to register data in.
To change the name of the selected memory key, tap [Edit Name].Tap [OK].
To set the detected size to the paper size, tap [OK].
Operation procedure: Recalling the custom size registered in memory
Tap [Copy].
Tap [Paper], select Tray1, Tray2, or Bypass Tray, and tap [Change Tray Setting].

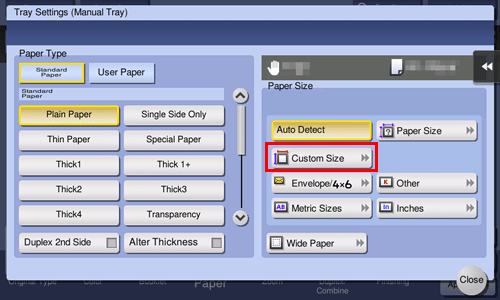

Tap [Custom Size].

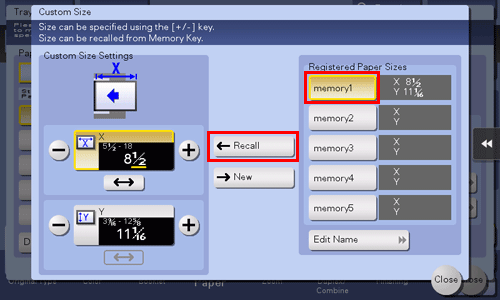

Select the paper size to recall from [Registered Paper Sizes], then tap [Recall].
