Checking Consumables Status

Checking Consumables Status

Users will be informed of the time to replace a Toner Cartridge or Imaging Unit via a message displayed on the screen.

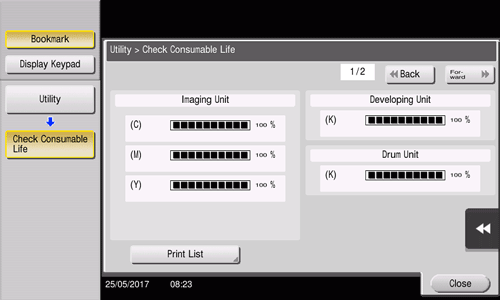

Also, users can select [Utility] - [Check Consumable Life] to display the current status of consumables (consumption level) on the screen and check it.

Tips

• [Check Consumable Life] is only displayed in some area.

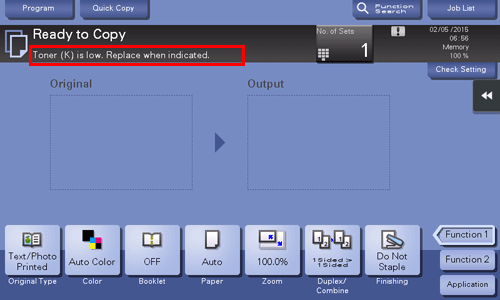

When toner is running out in the Toner Cartridge

When it is almost time to replace a Toner Cartridge, an advanced warning message appears. Prepare a replacement Toner Cartridge based on the maintenance contract.

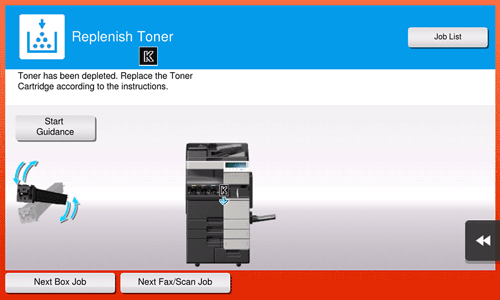

When it is time to replace a Toner Cartridge

When it is time to replace a Toner Cartridge, a replacement prompt message appears. Replace it based on the maintenance contract. Tap [Start Guidance] to display the replacement procedure on the screen and check it.

Reference

• For details on the replacement procedure, refer to [Replacing a Toner Cartridge] .

Tips

• Do not replace a Toner Cartridge of a color that is not displayed.

• When it is time to replace a Toner Cartridge of a color other than black, printing can be forcibly continued using black. Tap [Continue], and then select a desired print job.

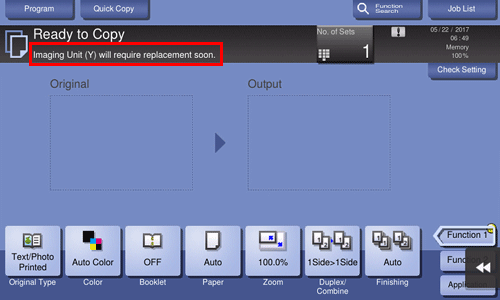

When it is almost time to replace an Imaging Unit

When it is almost time to replace an Imaging Unit, an advanced warning message appears.

Tips

• By the factory default status, this message is displayed only in some area.

• The settings by the service representative are required to display a message about Imaging Unit. For details, contact your service representative.

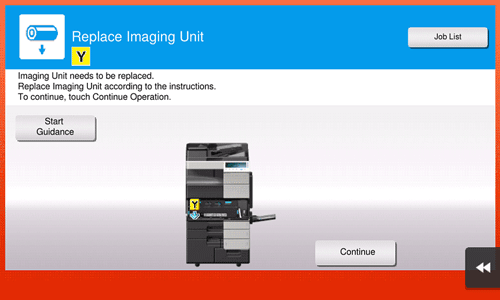

When it is time to replace an Imaging Unit

When it is time to replace an Imaging Unit, a replacement prompt message appears. Replace it based on the maintenance contract. Tap [Start Guidance] to display the replacement procedure on the screen and check it.

NOTICE

• A Imaging Unit must not be replaced before the relevant message appears.

Reference

• For details on the replacement procedure, refer to [Replacing an Imaging Unit] .

Tips

• By the factory default status, this message is displayed only in some area.

• The settings by the service representative are required to display a message about Imaging Unit. For details, contact your service representative.

• When it is time to replace an Imaging Unit of a color other than black, printing can be forcibly continued using black. Tap [Continue], and then select a desired print job.
