Adjusting the Touch Panel

Adjusting a position to press the Touch Panel

If a Touch Panel key does not respond normally when tapped, it may not be detected properly.

Tap [Accessibility] - [Touch Panel Adjustment].
- If a keying error recurs even after [Touch Panel Adjustment] is tapped, press 1 on the Keypad.

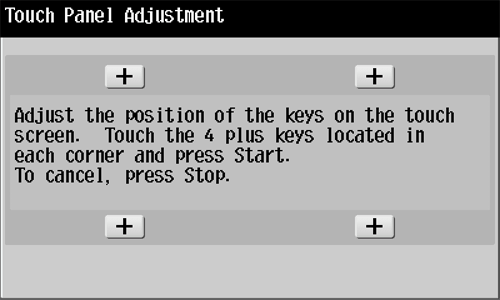

Tap four [+] keys while checking keying sounds.
- Tap these [+] keys to adjust a position gap. Tap these keys in any sequence.
- To readjust, press C (Clear), then re-tap the [+] keys.
- To stop the adjustment, press the Stop key.
Tapping four [+] keys lights the Start indicator lamp in blue.
Press the Start key.
Re-operate the screen that did not respond properly before adjustment, and check that the keying position is adjusted correctly.

After this procedure, if a keying error recurs, contact your service representative.

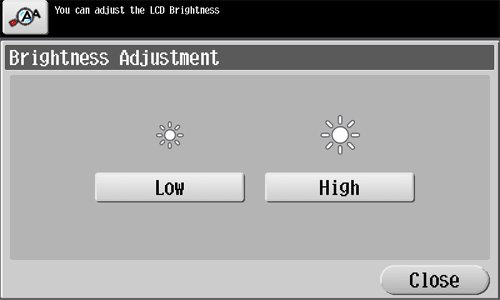

Adjust the brightness level of the Touch Panel.

Tap [Accessibility] - [Brightness Adjustment], and select [Low] or [High] to adjust the brightness.

Change the double-tap interval at five levels. Double-tap the box at the right of the screen to check the current setting.

Tap [Accessibility] - [Double Tab Interval Settings], and select [Slow], [Standard], or [Fast] (default: [Standard]) to change the interval.
