User's Guide
Checking the List of Optional Components (bizhub C364/C284/C224)
| No. | Name | Description |
|---|---|---|
1 | Main unit | Scans the original in the scanner section, and prints a scanned image in the printer section. This unit is referred to as "machine", "main unit", or "C364/C284/C224" in the manual. |
2 | Original Cover OC-511 | Used to fix the loaded originals. This is referred to as Original Cover in the manual. |
3 | Reverse Automatic Document Feeder DF-624 | Automatically feeds and scans originals by page. This unit also reverses and automatically scans 2-sided originals. This unit is referred to as ADF in the manual. |
4 | Dual Scan Document Feeder DF-701 | Automatically feeds and scans originals by page. This unit scans a 2-sided original by only requiring the paper be fed into the machine once without reversing. This unit is referred to as ADF in the manual. |
5 | Fax Kit FK-511 | Used to operate this machine as a fax machine. Alternatively, this kit allows more telephone lines to be connected. |
6 | Authentication Unit AU-102 | Performs user authentication by scanning vein patterns in the finger. The Working Table WT-506 is required to install Authentication Unit AU-102. This unit is referred to as an Authentication Unit in the manual. |
7 | Authentication Unit AU-201 | Performs user authentication by scanning information recorded on the IC card. The Mount Kit MK-735 is required to install Authentication Unit AU-201. This unit can also be installed on the Working Table WT-506. This unit is referred to as an Authentication Unit in the manual. |
8 | Working Table WT-506 | Provides an area to temporarily place an original or other materials. This is also used when the Authentication Unit is installed. |
9 | Security Kit SC-508 | Supports the copy guard and password copy functions to prevent unauthorized copying. |
10 | Keyboard Holder KH-102 | Install this holder to use a external keyboard. For details on external keyboards, contact your service representative. |
11 | Mount Kit MK-730 | Used to print data on banner paper. |
12 | Image Controller IC-414 | Image Controller that is installed in bizhub C364/bizhub C284. Installing this unit will provide higher quality printing result. Video Interface Kit VI-506 is required to install Image Controller IC-414. Also, Desk DK-510, Paper Feed Cabinet PC-410, Paper Feed Cabinet PC-110, or Paper Feed Cabinet PC-210 must be installed onto this machine. |
13 | Desk DK-705 | Used to install this machine on the floor. This unit is referred to as Desk in the manual.
|
14 | Desk DK-510 | Used to install this machine on the floor. This unit is referred to as Desk in the manual.
|
15 | Paper Feed Cabinet PC-410 | Allows you to load up to 2500 sheets of 8-1/2  11 (A4) size.This unit is referred to as LCT (built-in) in the manual. |
16 | Paper Feed Cabinet PC-210 | Allows you to load up to 500 sheets respectively in the top and bottom trays. This unit is referred to as Double Paper Feed Cabinet in the manual. |
17 | Paper Feed Cabinet PC-110 | Allows you to load up to 500 sheets in the top tray and use the bottom tray as a storage box. This unit is referred to as Single Paper Feed Cabinet in the manual. |
18 | Finisher FS-534 | Sorts, groups and staples printed paper before outputting it. To install Finisher FS-534, Desk DK-510, Paper Feed Cabinet PC-410, Paper Feed Cabinet PC-110, or Paper Feed Cabinet PC-210 must be installed onto this machine. |
19 | Saddle Stitcher SD-511 | Install this unit onto Finisher FS-534. This unit supports the fold/bind function. It is referred to as Saddle Stitcher in the manual. |
20 | Punch Kit PK-520 | Install this unit onto Finisher FS-534. This unit supports the punching function. |
21 | Finisher FS-533 | Install this unit onto the output tray of this machine. Sorts, groups and staples printed paper before outputting it. |
22 | Punch Kit PK-519 | Install this unit onto Finisher FS-533. This unit supports the punching function. |
23 | Job Separator JS-506 | Install this unit onto the output tray of this machine. This unit sorts printed sheets. This unit is referred to as Job Separator in the manual. |
The following options are built into this machine and are not shown in the figure above. | ||
24 | Stamp Unit SP-501 | Stamps a scanned original when sending a fax. This unit allows you to check that the original has been scanned. |
25 | Spare TX Marker Stamp 2 | A replacement stamp for the Stamp Unit SP-501. |
26 | Local Interface Kit EK-606 | Install this unit when using the external keyboard and voice guidance function. This unit is equipped with a speaker. For details on external keyboards, contact your service representative. |
27 | Local Interface Kit EK-607 | Install this unit when connecting to the external keyboard, voice guidance function, or Bluetooth-enabled device. This unit is equipped with a speaker and a receiving device for Bluetooth communication. For details on external keyboards, contact your service representative. |
28 | Video Interface Kit VI-506 | This unit is required to install Image Controller IC-414 onto bizhub C364 or bizhub C284. |
29 | i-Option LK-101 v3 | Supports the web browser function that is one of the advanced functions. |
30 | i-Option LK-102 v3 | Supports the PDF processing function that is one of the advanced functions. |
31 | i-Option LK-104 v3 | Supports the voice guidance function that is one of the advanced functions. |
32 | i-Option LK-105 v3 | Supports the searchable PDF function that is one of the advanced functions. |
33 | i-Option LK-106 | Used to add a bar code font that is one of special fonts. |
34 | i-Option LK-107 | Used to add a unicode font that is one of special fonts. |
35 | i-Option LK-108 | Used to add an OCR font that is one of special fonts. |
36 | Upgrade Kit UK-204 | Install this unit when using Web browser, PDF processing, voice guidance, searchable PDF, My Panel, My Address, or special fonts. |
The following options are not shown in the figure. | ||
37 | Heater HT-509 | Prevents paper in a paper tray from being affected by humidity. To install Heater HT-509, Desk DK-510, Paper Feed Cabinet PC-410, Paper Feed Cabinet PC-110, or Paper Feed Cabinet PC-210 must be installed onto this machine. |
38 | Power Supply BOX MK-734 | Turns on/off dehumidifier heater operations. |
39 | Mount Kit MK-735 | Required to install Authentication Unit AU-201. |
Front side
The illustration above shows the main unit with Reverse Automatic Document Feeder DF-624, and Paper Feed Cabinet PC-410.
| No. | Name | Description |
|---|---|---|
1 | Original Pad | Fixes the loaded originals. |
2 | Paper-Empty Indicator | Flashes in orange when a tray runs low on paper, and lights up when a paper-out occurs. |
3 | LCT (built-in) | Allows you to load up to 2500 sheets. This tray can hold up to 1000 sheets of Thick 1, Thick 1+, Thick 2, and Thick 3. |
4 | Jam Removal Dial | Turn this dial to remove paper that caused a paper jam in the ADF. |

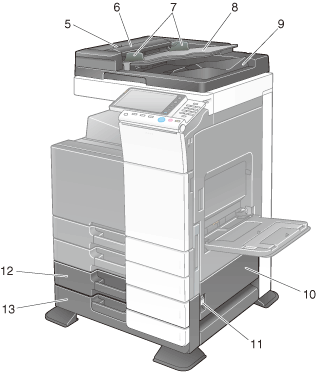

The illustration above shows the main unit with Paper Feed Cabinet PC-210 or Paper Feed Cabinet PC-110, and Reverse Automatic Document Feeder DF-624.
| No. | Name | Description |
|---|---|---|
5 | Left Cover Release Lever | Used to open the Left Cover. |
6 | Left Cover | Open the Left Cover when clearing a paper jam. |
7 | Lateral Guide | Adjust this guide along the width of the original. |
8 | Original Tray | Load the original face up in this tray. Open the Original Tray when clearing a paper jam in the ADF. |
9 | Original Output Tray | The scanned original is fed out onto this tray. Open the Original Output Tray when clearing a paper jam in the ADF. |
10 | Bottom Right Door | Open this door when clearing a paper jam in the Tray3 or Tray4 transport unit. |
11 | Bottom Right Door Release Lever | Used to lock the Bottom Right Door. |
12 | Tray3 | Allows you to load up to 500 sheets. This tray can hold up to 150 sheets of Thick 1, Thick 1+, Thick 2, and Thick 3. |
13 | Tray4/Storage Box | Used as a Storage Box when installing Single Paper Feed Cabinet. This box allows you to load up to 500 sheets when Double Paper Feed Cabinet is installed. This tray can hold up to 150 sheets of Thick 1, Thick 1+, Thick 2, and Thick 3. |
Rear side
The illustration below shows the main unit with Reverse Automatic Document Feeder DF-624, Paper Feed Cabinet PC-210, Fax Kit FK-511, and Power Supply BOX MK-734.
| No. | Name | Description |
|---|---|---|
1 | Heater Power Switch | Used to turn dehumidifier heater operations on or off. This function prevents paper from being affected by humidity when the power is turned on. The dehumidifier heater is available when you purchase Single/Double Paper Feed Cabinet, LCT (built-in), or Desk. |
2 | Jack for connecting a telephone (TEL PORT1) | Used to connect a telephone cord. Connect the cord to this connector when using only one telephone line. |
3 | Jack for connecting a telephone (TEL PORT2) | Used to connect a telephone cord. |
4 | Telephone Jack 2 (LINE PORT2) | Used to connect a general telephone subscriber line. |
5 | Telephone Jack 1 (LINE PORT1) | Used to connect a general telephone subscriber line. Connect the cord to this connector when using only one telephone line. |
