User's Guide
Large Capacity Unit LU-301/LU-204

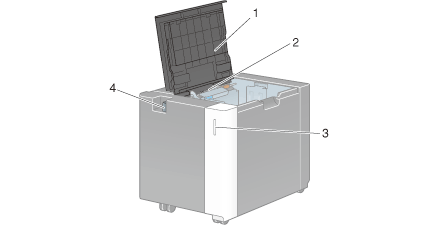

| No. | Name | Description |
|---|---|---|
1 | Upper Door | Open this door to load paper. |
2 | Paper Take-Up Roller | Rotates when paper is fed to this machine. |
3 | Paper-Empty Indicator | Flashes in orange when a tray runs low on paper, and lights up when a paper-out occurs. |
4 | Release Lever | Press this key to disconnect the Large Capacity Unit from the main unit. |
