Post Inserter Operations
Keys on control panel
When the Post Inserter PI-505 is installed on the Finisher FS-535, you can manually operate the Finisher FS-535 using the Post Inserter Control Panel.
| No. | Name | Description |
|---|---|---|
1 | Corner Staple Lamp | Indicates that the corner staple is selected. |
2 | Center Staple & Fold Lamp | Indicates that Center Staple is selected. |
3 | Finishing | Press this key to select finishing. |
4 | 2-Hole Lamp | Indicates that 2-Hole is selected. |
5 | 3-Hole Lamp | Indicates that 3-Hole is selected. |
6 | Select punch | Press this key to select the punch hole type. |
7 | Start/stop | Press this key to start post inserter operations. If you press this key during operation, this unit will stop. |
8 | 4-Hole Lamp | Indicates that 4-Hole is selected. |
9 | Tri-Fold Lamp | Indicates that Tri-Fold is selected. |
10 | 2 position staple lamp | Indicates that 2-position staple is selected. |

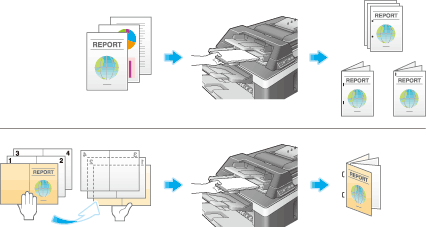

Finishing using Post Inserter
- Only the lower tray can be used as the paper tray. The upper tray is not available.
- Place paper in the lower tray of the Post Inserter, and align the lateral guide to the paper size.
- Load the original by placing it so that its top side faces the back of the machine.
- To use the corner staple or 2-staple option, load the paper face up.
- To perform Punch, load the paper face up.
- To perform Bind, load the front side of the bound paper face down.
- To perform Tri-Fold, load the outside of the tri-folded paper face down.
- Press the Finishing key and Select punch key, and select the desired finishing.
- To configure Finishing settings, press the Finishing key to turn the LED on. To configure punch settings, press the Select punch key to turn the LED on.
- Punch settings are available together with the corner staple or 2-staple option.
- Press the Start/stop key.
- If the Start/stop key is pressed during operation, the operation will be stopped.
