User's Guide
Z Folding Unit ZU-606

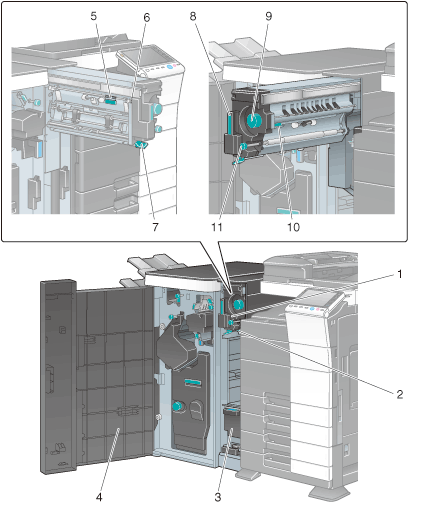

| No. | Name | Description |
|---|---|---|
1 | Z Folding/Conveyance Unit | Pull out this unit to remove jammed paper. |
2 | Guide Lever [FN1] | Turn this lever to clear a paper jam. |
3 | Punch Scrap Box | Remove this box when disposing of punch scraps. |
4 | Front Door | Open this door when clearing a paper jam or disposing punch scraps. |
5 | Guide Lever [FN6] | Turn this lever to clear a paper jam. |
6 | Guide Lever [FN7] | Turn this lever to clear a paper jam. |
7 | Guide Lever [FN8] | Turn this lever to clear a paper jam. |
8 | Handle [FN2] | Hold this handle when taking the Z-fold unit in and out. |
