User's Guide
Finisher FS-535/Saddle Stitcher SD-512/Punch Kit PK-521

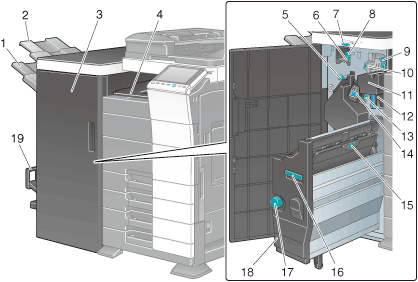

| No. | Name | Description |
|---|---|---|
1 | Output Tray 2 | Collects printed pages. |
2 | Output Tray 1 | Collects printed pages. |
3 | Front Door | Open this door when clearing a paper jam or staple jam or when replacing a staple cartridge. |
4 | Horizontal Transport Unit Cover | Open this cover when removing paper that caused a paper jam in the horizontal transport unit. |
5 | Jam Removal Dial [FS7] | Turn this dial to remove paper that caused a paper jam in the finisher. |
6 | Guide Lever [FS6] | Turn this lever to clear a paper jam. |
7 | Guide Lever [FS8] | Turn this lever to clear a paper jam. |
8 | Jam Removal Dial [FS5] | Turn this dial to remove paper that caused a paper jam in the finisher. |
9 | Guide Lever [FS3] | Turn this lever to clear a paper jam. |
10 | Guide Lever [FS4] | Turn this lever to clear a paper jam. |
11 | Punch Kit | Punches printed sheets for filing by installing the Punch Kit in the finisher. |
12 | Punch Scrap Box | Remove this box when disposing of punch scraps. |
13 | Guide Lever [FS9] | Turn this lever to clear a paper jam. |
14 | Staple Cartridge | Pull out this cartridge from the finisher when clearing a staple jam or replacing a staple cartridge. |
15 | Handle [SD2] | Turn this lever to clear a paper jam. |
16 | Handle [SD1] | Hold this handle when moving the Saddle Stitcher in and out. |
17 | Jam Removal Dial [SD3] | Turn this dial to remove paper that caused a paper jam in the finisher. |
18 | Saddle Stitcher | Pull out this unit when clearing a paper jam or staple jam or when replacing a staple cartridge. |
19 | Folding Output Tray | Used to feed out the printed fold/bind paper. |
20 | Jam Removal Dial [FS2] | Turn this dial to remove paper that caused a paper jam in the finisher. |
21 | Guide Lever [FS1] | Turn this lever to clear a paper jam. |
22 | Staple Cartridge | Pull out this cartridge from the Saddle Stitcher when clearing a staple jam or replacing a staple cartridge. |
23 | Guide Lever [SD4] | Turn this lever to clear a paper jam. |
24 | Guide Lever [SD5] | Turn this lever to clear a paper jam. |
25 | Exit Cover | This cover opens automatically when paper is fed out. |
