Cleaning This Machine

Cleaning the Slit Scan Glass

  • In bizhub C364/C284/C224, perform this procedure when the Reverse Automatic Document Feeder DF-624 or Dual Scan Document Feeder DF-701.
  1. Open the ADF.
  2. Wipe stains off the Slit Scan Glass using a dry and clean cloth.
    NOTICE
    • Do not touch the Slit Scan Glass.

Cleaning the Slit Scan Glass (Back)

  • In bizhub C364/C284/C224, perform this procedure when the Dual Scan Document Feeder DF-701 is installed.
  1. Open the ADF.
  2. Open the Opening and Closing Guide.
    • Release the lock lever of the Opening and Closing Guide, and open the Opening and Closing Guide.
  3. Wipe stains off the Slit Scan Glass (Back) using a dry and clean cloth.
    NOTICE
    • Do not touch the Slit Scan Glass (Back).
  4. Close the Opening and Closing Guide opened in Step 2.
    • Press the Hand mark in the center of the Opening and Closing Guide, and check that the Opening and Closing Guide is locked securely.

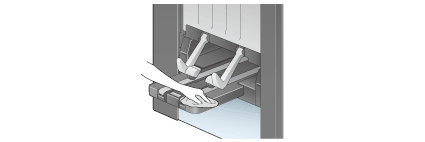

Cleaning the Original Glass, Control Panel, Roller, and Output Belt

Wipe the surface using a soft, dry cloth.

NOTICE
  • Do not press the Control Panel hard, otherwise the keys and Touch Panel may be damaged.
Tips
  • Clean the Output Belt when the Finisher FS-535 is installed in bizhub C554.

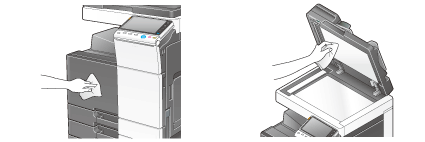

Cleaning the outer covers and Original Pad

Wipe the surface using a soft cloth moistened with a mild household detergent.

NOTICE
  • Never use solvents, such as benzene or thinner, to clean the Original Pad.
