User's Guide
Searchable PDF Function

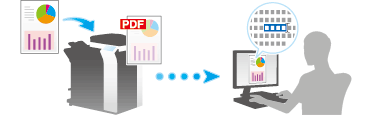

When converting scanned original data to PDF format, paste transparent text data into a PDF file, then create a searchable PDF file. This function automatically creates text information from scanned images using OCR character recognition technology.
The searchable PDF function supports multiple languages. When creating a searchable PDF file, select the language for the original to perform OCR processing properly. To enhance the accuracy of OCR processing, the page orientation is adjusted automatically.
The following shows the original text sizes that can be recognized by this machine.
| Japanese | European language | Asian language | ||
|---|---|---|---|---|
Resolution | 200 dpi | 12 pt to 142 pt | 9 pt to 142 pt | 20 pt to 142 pt |
300 dpi | 8 pt to 96 pt | 6 pt to 96 pt | 12 pt to 96 pt | |
Tips
- An Upgrade Kit UK-204 or i-Option LK-105 v3 is required to use the searchable PDF function on this machine.
- Text data may not be recognized correctly when:
- Text not supported in the MFP is used in the original.
- A language different from the original language is selected.
- The original orientation does not match the text direction when the page orientation is not adjusted automatically.
- To release the searchable PDF mode, download or send a file, which is saved in a User Box on the searchable PDF mode, from Web Connection.
