Overview

To use application software that communicates with this machine via OpenAPI, configure the OpenAPI settings of this machine.

If a certificate for this machine is registered, you can use SSL to encrypt communication between this machine and a client when the machine acts as a server.

By using the Simple Service Discovery Protocol (SSDP) function of this machine, you can associate with OpenAPI connection application software smoothly.

To perform the association via OpenAPI, follow the below procedure to configure the settings.

  1. Configure settings for connecting to the network such as setting of the IP address of this machine
    • For details on configuring the setting, refer to Here.
  2. Configure the basic OpenAPI settings
    • For details on configuring the setting, refer to Here.
  3. Set the following options according to your environment
    PurposeReference
    Encrypting communication between this machine and application software with SSL.
    Here

Configuring the basic OpenAPI settings

Enable the SSDP function. If necessary, change the OpenAPI communication port number.

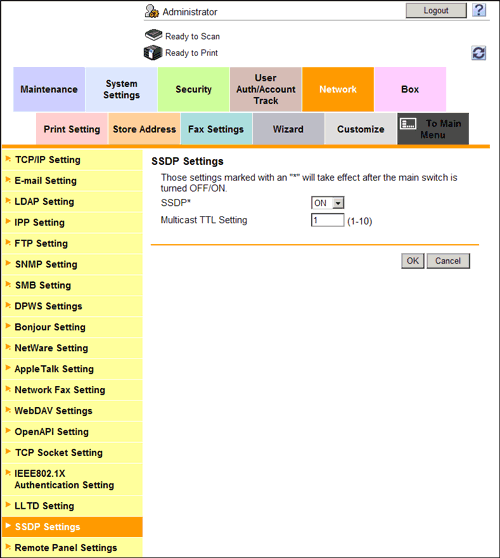

  1. In the administrator mode, select [Network] - [SSDP Settings], then configure the following settings.
    SettingsDescription
    [SSDP]
    Select [ON] to use the OpenAPI.
    This allows for the following actions:
    • Notifying of OpenAPI service having started on this machine.
    • Returning a response to a search for OpenAPI service.
    [ON] is specified by default.
    [Multicast TTL Setting]
    Change TTL (Time To Live) for SSDP multi-cast packet if necessary.
    The value is decremented by one each time a communication is established via the router. When the value reaches 0, packets are discarded.
    [1] is specified by default.

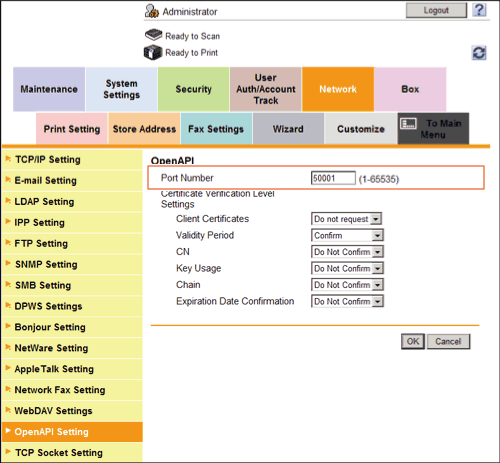

  2. In the administrator mode, select [Network] - [OpenAPI Setting], and change the port number if necessary (Default: [50001]).
    • Normally, you can use the original port number.
Tips
  • If you click [OK] after changing multiple port numbers collectively in Web Connection or on the Control Panel, a port number duplication error may appear. If a port number duplication error appears, change multiple port numbers one by one instead of changing them collectively.

Using SSL communication

Use SSL to encrypt communication between this machine and application software via OpenAPI.

  1. Register a certificate for this machine and enable SSL communication.
    • For details, refer to Here.

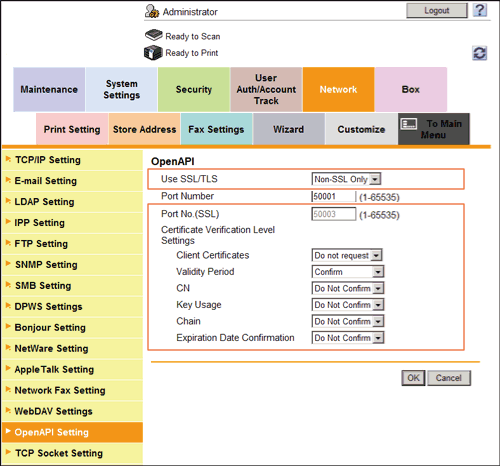

  2. In the administrator mode, select [Network] - [OpenAPI Setting], then configure the following settings.
    SettingsDescription
    [Use SSL/TLS]
    To use SSL communication, select [SSL Only] or [SSL/Non-SSL].
    [SSL Only] is specified by default.
    [Port No. (SSL)]
    If necessary, change the SSL communication port number.
    Normally, you can use the original port number.
    [50003] is specified by default.
    [Certificate Verification Level Settings]
    To verify the certificate, select items to be verified.
    If you select [Confirm] at each item, the certificate is verified for each item.
    [Client Certificates]
    Select whether to request a certificate from clients that connect to this machine.
    [Do not request] (not request) is specified by default.
    [Validity Period]
    Confirm whether the certificate is still valid.
    [Confirm] is specified by default.
    [CN]
    Confirm whether CN (Common Name) of the certificate matches the server address.
    [Do Not Confirm] is specified by default.
    [Key Usage]
    Confirm whether the certificate is used according to the intended purpose approved by the certificate issuer.
    [Do Not Confirm] is specified by default.
    [Chain]
    Confirm whether there is a problem in the certificate chain (certificate path).
    The chain is validated by referencing the external certificates managed on this machine.
    [Do Not Confirm] is specified by default.
    [Expiration Date Confirmation]
    Confirm whether the certificate has expired.
    Confirm for expiration of the certificate in the following order.
    • OCSP (Online Certificate Status Protocol) service
    • CRL (Certificate Revocation List)
    [Do Not Confirm] is specified by default.
Reference
  • In the administrator mode, select [Security] - [Certificate Verification Settings], then configure whether to verify the certificate. The certificate is verified by default. For details, refer to Here.
